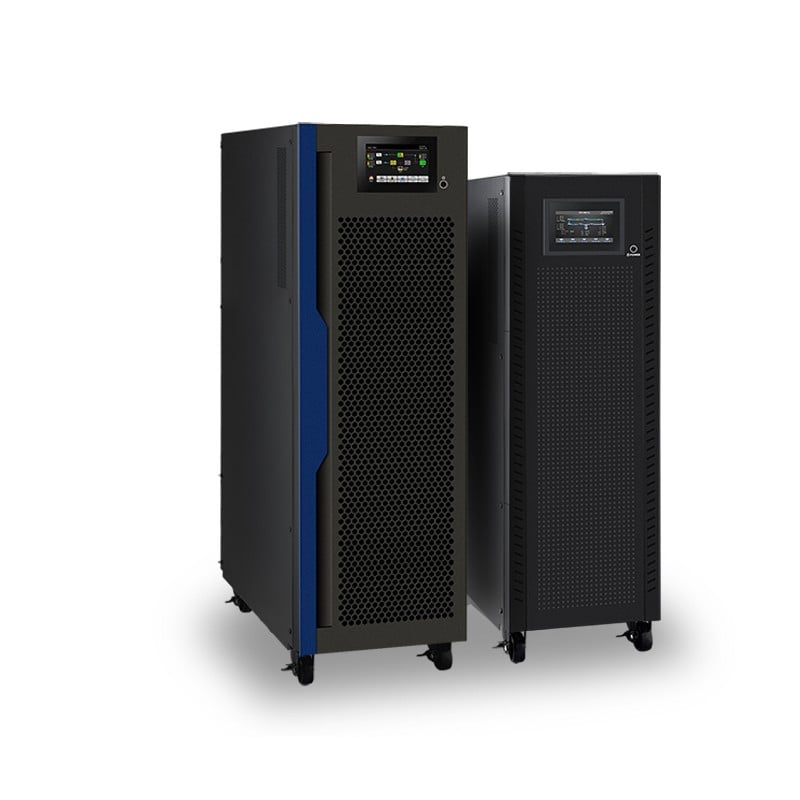

Voltronic Power Galleon III 33/31/11 10K-20K

Voltronic Galleon III 33/31/11 10K-20K

Discover the Voltronic Power Galleon III 33/31/11 10K-20K Online UPS with 3 x 380/400/415VAC voltage, ensuring reliable power protection.

  • Nominal Voltage: 3x 380/400/415 VAC
  • Voltage Range: 190-520 VAC
  • Power Factor: >= 0.99
AED 28,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Galleon III 33/31/11 10K-20K features

True double-conversion

Flexible system configuration as 3-in/3-out,

Flexible system configuration as 3-in/3-out, 3-in/1-out or 1-in/1-out

DSP technology guarantees high performance

Output power factor 1.0

Active power factor correction in

Active power factor correction in all phases

50Hz/60Hz frequency converter mode

ECO mode operation for energy

ECO mode operation for energy saving (ECO)

Dual AC inputs

Emergency power off function (EPO)

Generator compatible

Adjustable battery numbers for long-run

Adjustable battery numbers for long-run model

Parallel operation up to 4

Parallel operation up to 4 units with common battery

About the Voltronic Galleon III 33/31/11 10K-20K

The Voltronic Power Galleon III 33/31/11 Online UPS is engineered to deliver superior power protection with its robust voltage capabilities. Designed for both three-phase and single-phase systems, it ensures consistent performance across a wide voltage and frequency range. Ideal for data centers, telecommunications, and industrial applications, the Galleon III 33/31/11 provides reliable power backup and voltage regulation.

Specifications last updated 23 July 2026

Voltronic Galleon III 33/31/11 10K-20K full specifications

Electrical

Nominal Voltage3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N) / 3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N)
Voltage Range190-520 VAC @ 50% load; 305-478 VAC @ 100% load / 190-520 VAC @ 50% load; 305-478 VAC @ 100% load
Frequency Range46-54Hz or 56-64Hz / 46-54Hz or 56-64Hz
Power Factor>= 0.99 @ 100% load / >= 0.99 @ 100% load
Harmonic Distortion (THDi)< 4% @ full linear load / < 4% @ full linear load
Output Voltage3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N) / 3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N)
AC Voltage Regulation (Batt. Mode)± 1% / ± 1%
Frequency Range (Batt. Mode)50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz / 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio3:1 (max.) / 3:1 (max.)
Harmonic Distortion≤ 2 % THD (Linear Load); ≤ 5 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load); ≤ 5 % THD (Non-linear Load)
Transfer Time0 / 0 ms
Waveform (Batt. Mode)Pure Sinewave / Pure Sinewave
Overload Capacity> 130% : 1 minute (default), continuously working until breaker protection (optional) / > 130% : 1 minute (default), continuously working until breaker protection (optional)
AC Mode95.5% / 96%
ECO Mode98.5%
Battery Mode94.5% / 95.5%
Battery Type12V / 9Ah / 12V / 9Ah
Numbers (default)(10+10) pcs / (16+16) pcs
Typical Recharge Time9 hours recover to 90% capacity / 9 hours recover to 90% capacity
Charging Current (max.)1A (default) / 1A (default)
Charging Voltage+/-136.5 VDC / +/-218VDC
Long-run Model±8-10 / ±16-20
SafetyEN 62040-1:2008/A1:2013;IEC 62040-1:2008/A1:2013;CE low voltage directive
EMCEN 62040-2: 2006(C3) CE EMC directive
Smart RS-232/USBSupports Windows® family, Linux and MAC
Optional SNMPPower management from SNMP manager and web browser

Mechanical

Standard Dimension, D x W x H (mm)630 x 250 x 826
Model Net Weight (kgs)80 / 133
Long-run Dimension, D x W x H (mm)630 x 250 x 826
Long-run Model Net Weight (kgs)25 / 37
Weight80 / 133 kg

Environmental

Operation Temperature0-40°C
Operation Humidity<95% and non-condensing
Altitude0 ~ 1500m at full load
Noise LevelLess than 62dB @ 1 Meter / Less than 65dB @ 1 Meter

Certifications

  • CE
  • EN 62040-1
  • IEC 62040-1
  • EN 62040-2
