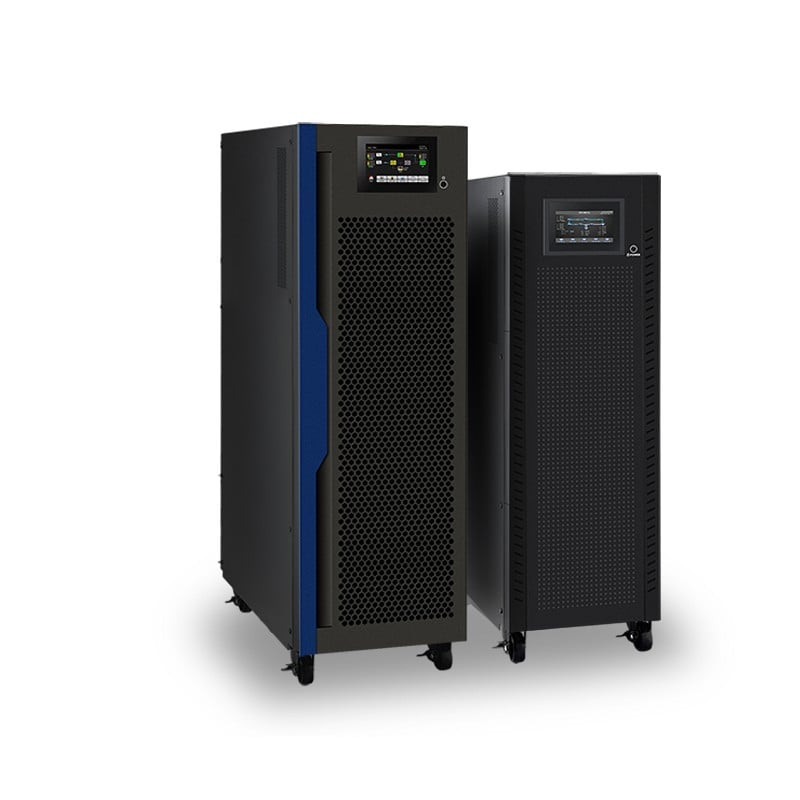

Voltronic Galleon II

Discover Voltronic Power's Galleon II Online UPS with versatile voltage options and precise regulation for optimal power protection.

Voltage: 100-240 VAC
Voltage Range: 55-300 VAC
Power Factor: >= 0.99

AED 8,000incl. VAT

In stock

Full Specifications Download datasheet (PDF)

Voltronic Galleon II features

True double-conversion

Input power factor correction 0.99

Output power factor 0.9

50Hz/60Hz frequency converter mode

Programmable power management outlets

Emergency power off function (EPO)

ECO mode operation for energy

ECO mode operation for energy saving

Very high surge immunity up

Very high surge immunity up to 7KV, 13KA, 1300J

Generator compatible

High overload capability and enhanced

High overload capability and enhanced short circuit protection

SNMP/USB/RS-232 multiple communications

3-stage smart charging design

Maximum 8A extended parallel control

Maximum 8A extended parallel control available for long run model

Optional HID Power Device USB

Optional HID Power Device USB Port

Laser printer and ultrasound system

Laser printer and ultrasound system load acceptable

About the Voltronic Galleon II

Introducing the Galleon II, Voltronic Power's advanced Online UPS designed to deliver exceptional power protection. With a wide range of nominal voltages and precise AC voltage regulation, it ensures reliable performance across various applications. The Galleon II is ideal for safeguarding sensitive electronics, data centers, and critical IT infrastructure, providing uninterrupted power and stability.

Specifications last updated 27 March 2026

Voltronic Galleon II full specifications

Electrical

Nominal Voltage	100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC
Voltage Range	55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load / 55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load / 55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load / 55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load / 55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load / 55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load / 55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load / 55 - 150 VAC ± 5% or 110 - 300 VAC ± 5% @ 50% load
Frequency Range	40 Hz ~ 70 Hz / 40 Hz ~ 70 Hz / 40 Hz ~ 70 Hz / 40 Hz ~ 70 Hz / 40 Hz ~ 70 Hz / 40 Hz ~ 70 Hz / 40 Hz ~ 70 Hz / 40 Hz ~ 70 Hz
Power Factor	≥ 0.99 @ Nominal Voltage (100% Load) / ≥ 0.99 @ Nominal Voltage (100% Load) / ≥ 0.99 @ Nominal Voltage (100% Load) / ≥ 0.99 @ Nominal Voltage (100% Load) / ≥ 0.99 @ Nominal Voltage (100% Load) / ≥ 0.99 @ Nominal Voltage (100% Load) / ≥ 0.99 @ Nominal Voltage (100% Load) / ≥ 0.99 @ Nominal Voltage (100% Load)
Output Voltage	100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode)	± 1% / ± 1% / ± 1% / ± 1% / ± 1% / ± 1% / ± 1% / ± 1%
Frequency Range (Synchronized Range)	47 ~ 53 Hz or 57 ~ 63 Hz / 47 ~ 53 Hz or 57 ~ 63 Hz / 47 ~ 53 Hz or 57 ~ 63 Hz / 47 ~ 53 Hz or 57 ~ 63 Hz / 57 ~ 63 Hz or 47 ~ 53 Hz / 57 ~ 63 Hz or 47 ~ 53 Hz / 57 ~ 63 Hz or 47 ~ 53 Hz / 57 ~ 63 Hz or 47 ~ 53 Hz
Frequency Range (Batt. Mode)	50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz / 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz / 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz / 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz / 60Hz ± 0.1Hz or 50 Hz ± 0.1Hz / 60Hz ± 0.1Hz or 50 Hz ± 0.1Hz / 60Hz ± 0.1Hz or 50 Hz ± 0.1Hz / 60Hz ± 0.1Hz or 50 Hz ± 0.1Hz
Current Crest Ratio	3:1 / 3:1 / 3:1 / 3:1 / 3:1 (max.) / 3:1 (max.) / 3:1 (max.) / 3:1 (max.)
Harmonic Distortion	≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load) / ≤ 2 % THD (Linear Load) ; ≤ 4 % THD (Non-linear Load)
Transfer Time	0 ms
Waveform (Batt. Mode)	Pure Sinewave
AC Mode	90% / 90% / 91% / 91% / 90% / 90% / 91% / 91%
ECO Mode	97%
Battery Type	12 V / 7 Ah / 12 V / 9 Ah / 12 V / 7 Ah / 12 V / 7 Ah / 12 V / 7 Ah / 12 V / 9 Ah / 12 V / 7 Ah / 12 V / 7 Ah
Numbers	3 / 3 / 6 / 8 / 2 / 3 / 6 / 6
Typical Recharge Time	4 hours recover to 90% capacity
Charging Current (max.)	1.5A / 1.5A / 1.2A / 1.2A / 1.5A* / 1.5A* / 1.5A* / 1.5A*
Charging Voltage	41.0 VDC ± 1% / 41.0 VDC ± 1% / 82.1 VDC ± 1% / 109.6 VDC ± 1% / 27.4 VDC ± 1%, 41.1 VDC ± 1% / 41.1 VDC ± 1% / 54.8 VDC ± 1%, 82.1 VDC ± 1% / 82.1 VDC ± 1%
Smart RS-232/USB	Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC

Mechanical

Dimension, D×W×H (mm)	397 × 145 × 220 / 397 × 145 × 220 / 421 × 190 × 318 / 421 × 190 × 318 / 410 × 438 × 88 / 410 × 438 × 88 / 510 × 438 × 88 / 630 × 438 × 88
Net Weight (kgs)	12.8 / 13.8 / 26.6 / 32.2 / 11.6 / 14.2 / 26.9 / 27.4
Weight	12.8 / 13.8 / 26.6 / 32.2 / 11.6 / 14.2 / 26.9 / 27.4

Environmental

Humidity	20-95 % RH @ 0- 40°C (Non-condensing) / 20-95 % RH @ 0- 40°C (Non-condensing) / 20-95 % RH @ 0- 40°C (Non-condensing) / 20-95 % RH @ 0- 40°C (Non-condensing) / 20-90 % RH @ 0- 40°C (Non-condensing) / 20-90 % RH @ 0- 40°C (Non-condensing) / 20-90 % RH @ 0- 40°C (Non-condensing) / 20-90 % RH @ 0- 40°C (Non-condensing)
Noise Level	Less than 50dB @1Meter

Frequently Asked Questions

The Galleon II offers high efficiency with 90% in AC mode and 97% in ECO mode. It supports a nominal voltage range of 100/110/115/120/127 VAC or 200/208/220/230/240 VAC, and a power factor of ≥ 0.99 at nominal voltage with 100% load.

Yes, the Galleon II uses a 12 V / 7 Ah battery type, making it compatible with standard UPS battery configurations.

The Galleon II's physical dimensions and weight are designed for easy installation, but specific details such as IP rating are not provided in the key specifications.

Installation requires a stable environment with a voltage range of 55 - 150 VAC or 110 - 300 VAC at 50% load. Ensure proper ventilation and adherence to safety standards.

The Galleon II comes with a standard warranty, details of which can be obtained from the retailer or Voltronic Power's customer service.

The Galleon II complies with standard certifications, ensuring reliability and safety in various operational environments.

The Galleon II operates efficiently within a frequency range of 40 Hz to 70 Hz and maintains performance in various temperature and humidity conditions.

Key features include zero transfer time, pure sinewave output in battery mode, and low harmonic distortion, making it ideal for sensitive electronic equipment.
