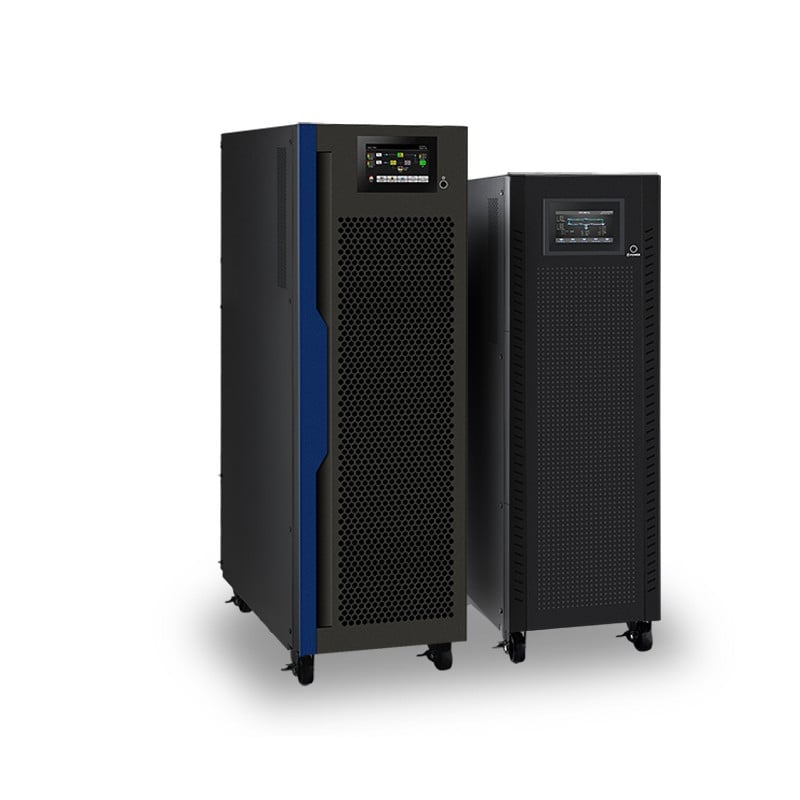

Voltronic Power Galleon III 33/31/11 10KL-20KL RT

Voltronic Galleon III 33/31/11 10KL-20KL RT

Discover the Voltronic Power Galleon III 33/31/11 10KL-20KL RT UPS with 3-phase 380/400/415VAC and precise voltage regulation for reliable power.

  • Voltage: 220-415 VAC
  • Voltage Range: 190-520 VAC (3P)
  • Power Factor: >= 0.99
AED 30,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Galleon III 33/31/11 10KL-20KL RT features

True double-conversion

Rack/Tower design

Flexible system configuration as 3-in/3-out,

Flexible system configuration as 3-in/3-out, 3-in/1-out or 1-in/1-out

DSP technology guarantees high performance

Output power factor 1

Active power factor correction in

Active power factor correction in all phases

50Hz/60Hz frequency converter mode

ECO mode operation for energy

ECO mode operation for energy saving (ECO)

Emergency power off function (EPO)

Dual AC inputs

Generator compatible

Adjustable battery numbers

Parallel operation up to 4

Parallel operation up to 4 units with common battery

About the Voltronic Galleon III 33/31/11 10KL-20KL RT

The Voltronic Power Galleon III 33/31/11 UPS is engineered for superior performance in demanding environments. With a nominal voltage of 3 x 380/400/415VAC or 220/230/240VAC, it ensures stable power delivery with precise voltage regulation in battery mode. Ideal for data centers, industrial applications, and critical infrastructure, the Galleon III 33/31/11 provides reliable power backup and protection.

Specifications last updated 23 July 2026

Voltronic Galleon III 33/31/11 10KL-20KL RT full specifications

Electrical

Nominal Voltage3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N)
Voltage Range190-520 VAC (3-phase) @ 50% load; 305-478 VAC (3-phase) @ 100% load
Frequency Range46-54 Hz or 56-64 Hz
Power Factor>= 0.99 @ 100% load
Output Voltage3 x 380/400/415VAC (3Ph+N) or 220/230/240VAC (1Ph+N)
AC Voltage Regulation (Batt. Mode)± 1%
Frequency Range (Batt. Mode)50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio3:1 (max.)
Harmonic Distortion≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-linear Load)
Transfer Time0 ms
Waveform (Batt. Mode)Pure Sine Wave
AC Mode95.5% / 96% / 96%
ECO Mode98.5%
Battery Mode94.5% / 95.5% / 95.5%
Battery TypeDepending on application
Numbers±8 ~ ±10 (adjustable) / ±16 ~ ±20 (adjustable) / ±10 ~ ±20 (adjustable)
Charging Current (max.)1A ~ 18A (adjustable)
Charging Voltage (max.)+/ -13.65V DC x N (N=8~10) / +/ -13.65V x N (N=16~20) / +/ -13.65V x N (N=10~20)
Smart RS-232/USBSupports Windows® Family, Linux and MAC
Optional SNMPPower management from SNMP manager and web browser

Mechanical

Dimension, D X W X H (mm)620 x 438 x 88 [2U] / 620 x 438 x 130.6 [3U] / 620 x 438 x 130.6 [3U]
Net Weight (kgs)16 / 22.2 / 23.1
Weight16 / 22.2 / 23.1

Environmental

Operation Temperature0-40°C
Operation Humidity<95% and non-condensing
Noise LevelLess than 62dB @ 1 Meter / Less than 65dB @ 1 Meter / Less than 65dB @ 1 Meter
