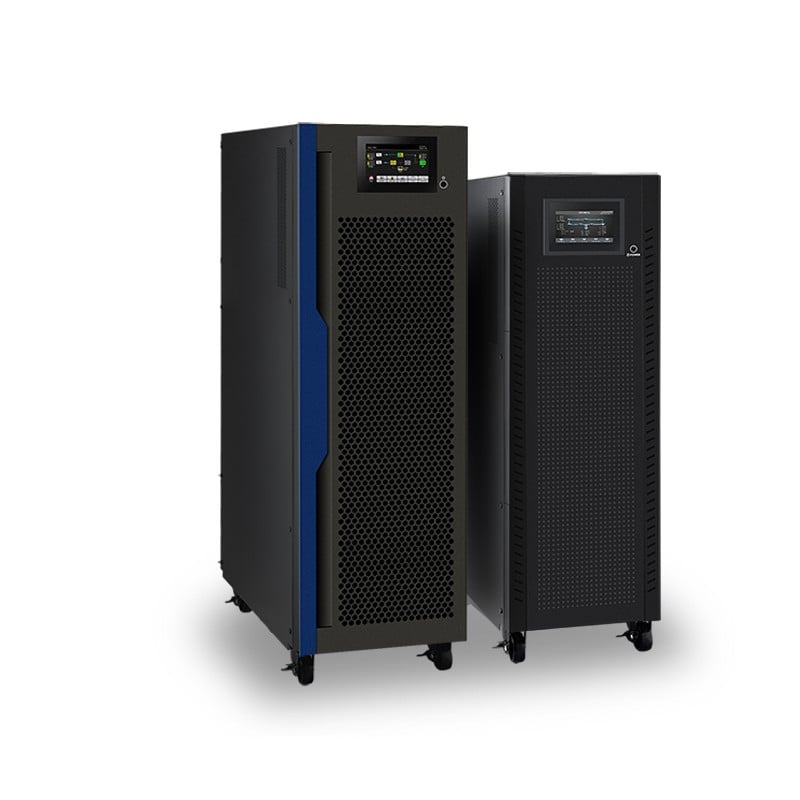

Voltronic Power Galleon One

Voltronic Galleon One

Discover the Galleon One Online UPS by Voltronic Power with versatile voltage options and precise AC regulation for optimal performance.

  • Nominal Voltage: 100-240 VAC
  • Voltage Range: 55-300 VAC
  • Power Factor: ≥ 0.99
AED 6,500incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Galleon One features

True double-conversion

Output power factor 1

Input power factor correction

50/60Hz Frequency Converter Mode

ECO mode energy saving

Emergency power off (EPO) function

Provides over voltage cut-off protection

Provides over voltage cut-off protection and surge immunity by MOV

High power factor charger up

High power factor charger up to 8A/12A capacity with very low ripple current when charging battery

Low input THD to reduce

Low input THD to reduce power system pollution

Adjustable charging current via LCD

Adjustable charging current via LCD panel

Generator compatible

Optional HID Power Device USB

Optional HID Power Device USB Port

About the Voltronic Galleon One

The Galleon One by Voltronic Power is a state-of-the-art Online UPS designed to deliver reliable power protection. With its wide range of nominal voltages and precise AC voltage regulation, it ensures your critical systems remain operational even in fluctuating power conditions. Ideal for data centers, telecommunications, and critical IT infrastructure, the Galleon One provides seamless power continuity and protection against power disturbances.

Specifications last updated 27 March 2026

Voltronic Galleon One full specifications

Electrical

Nominal Voltage100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 100/110/115/120/127 VAC or 200/208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC
Voltage Range55 - 150 VAC ± 3% or 160 - 300 VAC ± 3% at 50% load / 55 - 150 VAC ± 3% or 160 - 300 VAC ± 3% at 50% load / 55 - 150 VAC ± 3% or 160 - 300 VAC ± 3% at 50% load / 55 - 150 VAC ± 3% or 160 - 300 VAC ± 3% at 50% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load / 110 - 300VAC ± 3% at 50% load; 176 - 300VAC ± 3% at 100% load
Frequency Range40Hz - 70Hz / 40Hz - 70Hz / 40Hz - 70Hz / 40Hz - 70Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz
Power Factor≥ 0.99 @ nominal voltage (100% load) / ≥ 0.99 @ nominal voltage (100% load) / ≥ 0.99 @ nominal voltage (100% load) / ≥ 0.99 @ nominal voltage (100% load) / ≥ 0.99 @ full load / ≥ 0.99 @ full load / ≥ 0.99 @ full load / ≥ 0.99 @ full load / ≥ 0.99 @ full load / ≥ 0.99 @ full load / ≥ 0.99 @ full load / ≥ 0.99 @ full load
Output Voltage100*/110*/115*/120*/127 VAC or 200*/208*/220/230/240 VAC / 100*/110*/115*/120*/127 VAC or 200*/208*/220/230/240 VAC / 100*/110*/115*/120*/127 VAC or 200*/208*/220/230/240 VAC / 100*/110*/115*/120*/127 VAC or 200*/208*/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode)± 1%
Frequency Range (Synchronized Range)47 - 53 Hz or 57 - 63 Hz / 47 - 53 Hz or 57 - 63 Hz / 47 - 53 Hz or 57 - 63 Hz / 47 - 53 Hz or 57 - 63 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz / 46-54 Hz or 56-64 Hz
Waveform (Batt. Mode)Pure Sinewave
AC Mode≥ 89% @ battery fully charged / ≥ 89% @ battery fully charged / ≥ 89% @ battery fully charged / ≥ 89% @ battery fully charged / 94% / 94% / 94% / 94% / 94% / 94% / 94% / 94%
ECO Mode≥ 96% @ battery fully charged / ≥ 96% @ battery fully charged / ≥ 96% @ battery fully charged / ≥ 96% @ battery fully charged / 98.5% / 98.5% / 98.5% / 98.5% / 98.5% / 98.5% / 98.5% / 98.5%
Battery Type12 V / 9 Ah / 12 V / 7 Ah / 12 V / 9 Ah / 12 V / 7 Ah / 12 V / 7 Ah / 12 V / 9 Ah / 12 V / 9 Ah / 12 V / 9 Ah / 12 V / 9 Ah / 12 V / 9 Ah / 12 V / 9 Ah / 12 V / 9 Ah
Numbers2 / 3 / 4 / 6 / 16 / 16 / 16 / 16 / 16 / 16 / 16 / 16
Typical Recharge Time3 hours recover to 95% capacity / 3 hours recover to 95% capacity / 3 hours recover to 95% capacity / 3 hours recover to 95% capacity / 9 hours recover to 90% capacity / 9 hours recover to 90% capacity / 9 hours recover to 90% capacity / 9 hours recover to 90% capacity / 9 hours recover to 90% capacity / 9 hours recover to 90% capacity / 9 hours recover to 90% capacity / 9 hours recover to 90% capacity

Mechanical

Dimension, D x W x H (mm)397 x 145 x 220 / 410 x 438 x 88 / 410 x 438 x 88 / 510 x 438 x 88 / 369 x 190 x 688 / 442 x 190 x 688 / 442 x 190 x 688 / 442 x 190 x 688 / 442 x 190 x 688 / 442 x 190 x 688 / 442 x 190 x 688 / 442 x 190 x 688
Net Weight (without battery) (kgs)6.6 / 7.8 / 9.4 / 10.6 / 54 / 66 / 66 / 66 / 66 / 66 / 66 / 66
Weight6.6 / 7.8 / 9.4 / 10.6 / 54 / 66 / 66 / 66 / 66 / 66 / 66 / 66

Environmental

Humidity20-95% RH @ 0-40°C (non-condensing)
Noise LevelLess than 50dB @ 1 Meter / Less than 55dB @ 1 Meter / Less than 55dB @ 1 Meter / Less than 55dB @ 1 Meter / Less than 55dB @ 1 Meter / Less than 58dB @ 1 Meter / Less than 58dB @ 1 Meter / Less than 58dB @ 1 Meter / Less than 58dB @ 1 Meter / Less than 58dB @ 1 Meter / Less than 58dB @ 1 Meter / Less than 58dB @ 1 Meter

Certifications

  • CE
  • cTUVus (comply to UL1778)
  • FCC
