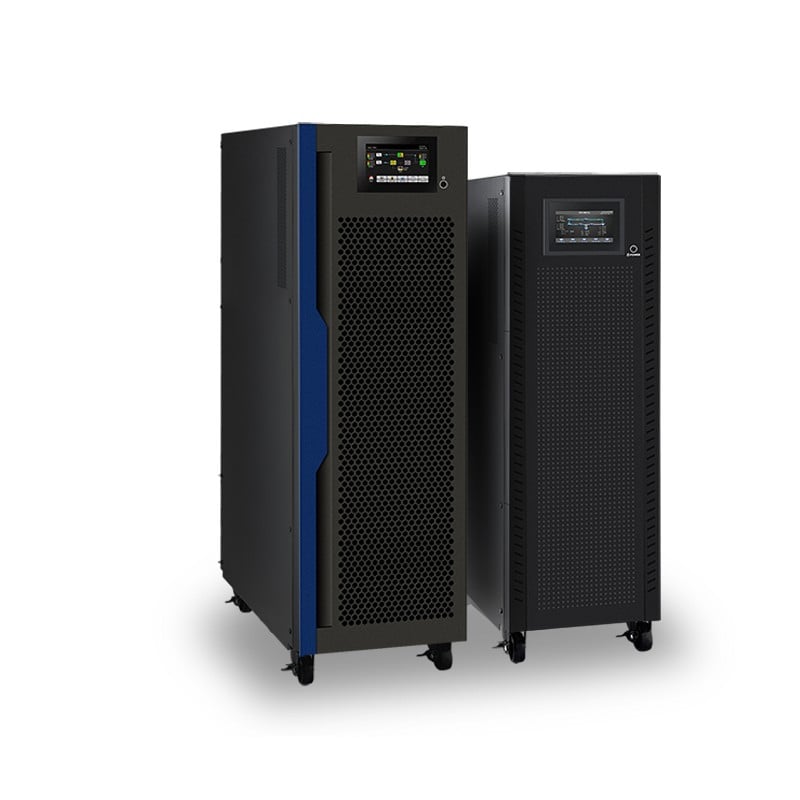

Voltronic Power Galleon III 3P/3P 30K

Voltronic Galleon III 3P/3P 30K

Discover the Voltronic Power Galleon III 3P/3P 30K Online UPS with 3 x 380/400/415 VAC output and ±1% voltage regulation.

  • Rated Output Power (VA): 30kVA
  • Rated Output Power (W): 30kW
  • Voltage: 3x 380-415 VAC (3P)
  • Voltage Range: 190-520 VAC (3P)
  • Power Factor: >= 0.99
AED 75,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Galleon III 3P/3P 30K features

True double-conversion

DSP technology guarantees high performance

Output power factor 1.0

Active power factor correction in

Active power factor correction in all phases

50Hz/60Hz frequency converter mode

ECO mode operation for energy

ECO mode operation for energy saving (ECO)

Emergency power off function (EPO)

Generator compatible

SNMP+USB+RS-232 multiple communications

3-stage extendable charging design for

3-stage extendable charging design for optimized battery performance

Adjustable battery numbers for long-run

Adjustable battery numbers for long-run model

Maintenance bypass available

Optional parallel operation

Optional isolation transformer offers full

Optional isolation transformer offers full isolation and complete common mode noise rejection

About the Voltronic Galleon III 3P/3P 30K

The Voltronic Power Galleon III 3P/3P 30K is a robust online UPS designed to deliver reliable power protection. With a nominal voltage of 3 x 380/400/415 VAC and precise AC voltage regulation of ±1%, it ensures optimal performance for critical applications. Ideal for data centers, industrial facilities, and telecommunications, the Galleon III provides seamless power continuity and protection against voltage fluctuations.

Specifications last updated 23 July 2026

Voltronic Galleon III 3P/3P 30K full specifications

Electrical

Rated Output Power (VA)30kVA
Rated Output Power (W)30kW
Nominal Voltage3 x 380/400/415 VAC (3Ph+N)
Voltage Range190-520 VAC (3-phase) @ 50% load; 305-478 VAC (3-phase) @ 100% load
Frequency Range46-54 Hz or 56-64 Hz
Power Factor≥ 0.99 @ 100% Load
Output Voltage3 x 380/400/415 VAC (3Ph+N)
AC Voltage Regulation± 1%
Frequency Range (Batt. Mode)50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio3:1 (max.)
Harmonic Distortion≤ 2% THD (Linear Load) ; ≤ 5% THD (Non-linear Load)
Transfer Time0 ms
Waveform (Batt. Mode)Pure Sine wave
AC Mode95.5%
ECO Mode98.5%
Battery Type12V/7Ah
Numbers(16+16)pcs x 2 strings
Charging Current (max.)2A (Default)
Charging Voltage218 VDC
Smart RS-232 / USBSupports Windows® Family, Linux and MAC
Optional SNMPPower management from SNMP manager and web browser
Battery Mode94.5%

Mechanical

Dimension, DxWxH (mm)815 x 300 x 1000
Net Weight (kgs)207
Long-run Model Dimension, DxWxH (mm)815 x 300 x 1000
Long-run Model Net Weight (kgs)55
Weight207 kg

Environmental

Operation Temperature0-40°C
Humidity< 95% and non-condensing
Noise LevelLess than 65 dB @ 1 Meter
