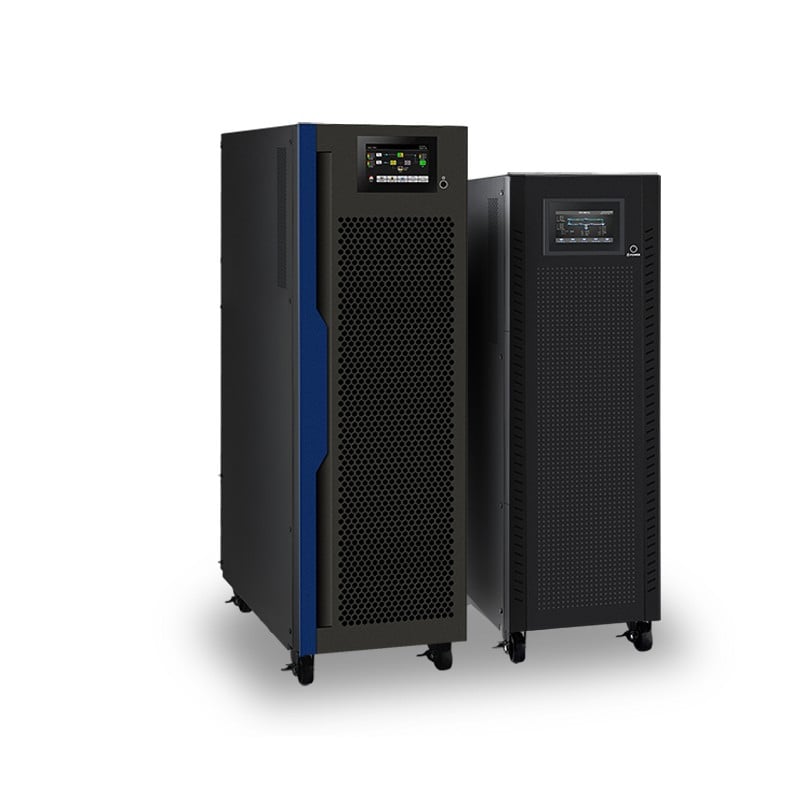

Voltronic Power Galleon II 3P/3P 10-20KVA, III 3P/3P 30-40KVA

Voltronic Galleon II 3P/3P 10-20KVA, III 3P/3P 30-40KVA

Discover Voltronic Power's Galleon II & III UPS systems with 3P/3P 10-40KVA, offering precise voltage regulation and wide frequency range.

  • Nominal Voltage: 3x 360-415 VAC (3Ph+N)
  • Voltage Range: 110-457 VAC
  • Power Factor: > 0.99
AED 35,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Galleon II 3P/3P 10-20KVA, III 3P/3P 30-40KVA features

True double-conversion

DSP technology guarantees high performance

Output power factor 1

Active power factor correction in

Active power factor correction in all phases

50Hz/60Hz frequency converter mode

Dual AC inputs

Emergency power off function (EPO)

Generator compatible

Adjustable battery numbers for long-run

Adjustable battery numbers for long-run model

Maintenance bypass available

Parallel operation up to 4

Parallel operation up to 4 units with common battery

Optional isolation transformer offers full

Optional isolation transformer offers full isolation and complete common mode noise rejection

About the Voltronic Galleon II 3P/3P 10-20KVA, III 3P/3P 30-40KVA

Voltronic Power's Galleon II and III UPS systems are engineered for superior performance with 3P/3P configurations ranging from 10KVA to 40KVA. These systems ensure reliable power with precise voltage regulation and adaptable frequency ranges, making them ideal for critical applications. The Galleon series is perfect for data centers, industrial operations, and sensitive electronic environments where consistent power supply is crucial.

Specifications last updated 27 March 2026

Voltronic Galleon II 3P/3P 10-20KVA, III 3P/3P 30-40KVA full specifications

Electrical

Nominal Voltage3 x 400 VAC (3Ph+N) / 230 VAC (1Ph+N) / 3 x 360/380/400/415 VAC (3Ph+N) / 3 x 360/380/400/415 VAC (3Ph+N) / 3 x 360/380/400/415 VAC (3Ph+N)
Voltage Range110-300 VAC ± 3 % @ 50% load; 176-276 VAC ± 3 % @ 100% load / 305VAC~457VAC / 305VAC~457VAC / 305VAC~457VAC
Frequency Range46-54 Hz or 56-64Hz / 40-70 Hz / 40-70 Hz / 40-70 Hz
Power Factor> 0.99 @ 100% Load / N/A / N/A / N/A
Harmonic Distortion (THDi)< 4% at full linear load / N/A / N/A / N/A
AC Voltage Regulation (Batt. Mode)± 1% / N/A / N/A / N/A
Frequency Range (Synchronized Range)46~54Hz or 56~64Hz / N/A / N/A / N/A
Frequency Range (Batt. Mode)50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz / 50/60 Hz ± 1% / 50/60 Hz ± 1% / 50/60 Hz ± 1%
Current Crest Ratio3:1 (max.) / N/A / N/A / N/A
Harmonic Distortion≤ 2% THD (Linear Load) ; ≤ 5 % THD (Non-linear Load) / N/A / N/A / N/A
Transfer TimeZero / N/A / N/A / N/A
Waveform (Batt. Mode)Pure Sine wave / N/A / N/A / N/A
Overload AC Mode100-110% for 60 min, 111-125% for 10 min, 126%-150% for 1 min; >150% immediately shutdown / N/A / N/A / N/A
AC Mode95.5% / N/A / N/A / N/A
ECO Mode98.5% / N/A / N/A / N/A
Battery Mode94.5% / N/A / N/A / N/A
Battery Type12V/9Ah / N/A / N/A / N/A
Numbers(10+10) pcs / (16+16) pcs x 2 / (16+16) pcs x 2 / (16+16) pcs x 2
Standard Model Recharge Time9 hours recover to 90% capacity / N/A / N/A / N/A
Charging Current (max.)1A (Default) / 2A (Default) / 2A (Default) / 2A (Default)
Charging Voltage+/-136.5 VDC / +/-218 VDC / +/-218 VDC / +/-218 VDC
Smart RS-232 / USBSupports Windows® Family, Linux and MAC / N/A / N/A / N/A
Optional SNMPPower management from SNMP manager and web browser / N/A / N/A / N/A
Battery Mode94.5%

Mechanical

Standard Model Dimension, DxWxH (mm)630 x 250 x 826 / 815 x 300 x 1000 / 815 x 300 x 1000 / 815 x 300 x 1000
Net Weight (kgs)139 / 207 / 207 / 207
Weight139 / 207 / 207 / 207

Environmental

Operation Temperature0-40°C / N/A / N/A / N/A
Operation Humidity< 95% and non-condensing / N/A / N/A / N/A
Altitude0 – 1500m at full load / N/A / N/A / N/A
