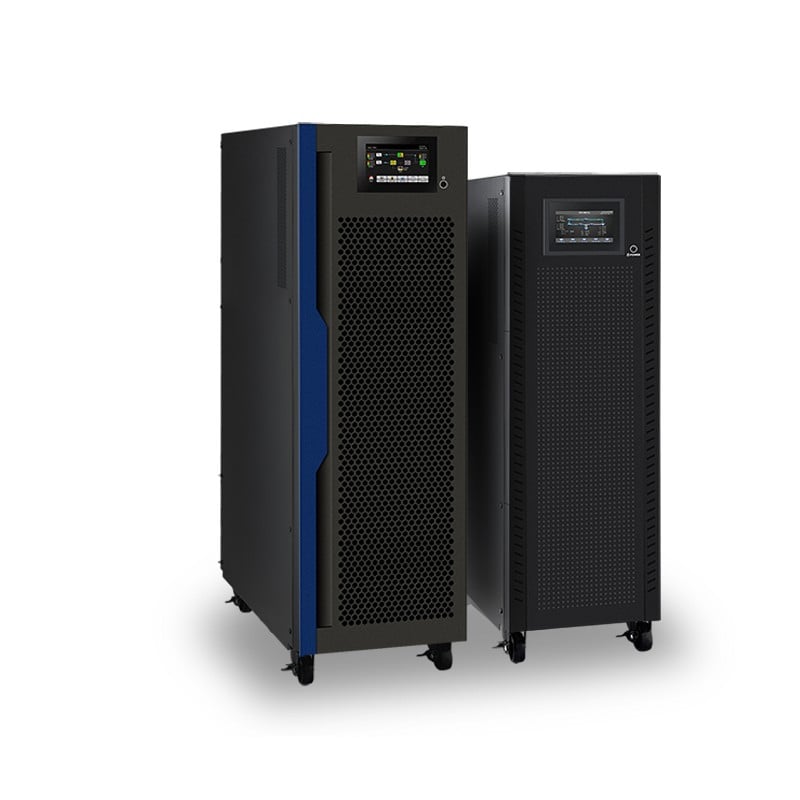

Voltronic Power Galleon One 48V

Voltronic Galleon One 48V

Discover the Galleon One 48V Online UPS by Voltronic Power with 230 VAC output and wide voltage range for reliable power protection.

  • Voltage: 230 VAC
  • Voltage Range: 110-280 VAC
  • Power Factor: >= 0.98
AED 5,500incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Galleon One 48V features

True double-conversion

Pure sinewave output

Output Power Factor 1.0

Configurable charging current via LCD

Configurable charging current via LCD setting

Compatible with Generator

Cold Start capability

Overload and short circuit protection

Very powerful AC charger at

Very powerful AC charger at 60A

Optional parallel operation up to

Optional parallel operation up to 9 units for Single Phase and Three Phase application

Common 48Vdc battery pack for

Common 48Vdc battery pack for the parallel system

Full Bridge inverter design to

Full Bridge inverter design to support half-wave load and unbalanced load

About the Voltronic Galleon One 48V

Introducing the Galleon One 48V Online UPS from Voltronic Power, designed to deliver exceptional power protection with a 230 VAC output and a wide voltage range of 110-280 VAC. This UPS ensures stability and reliability for your critical systems. Ideal for data centers, telecommunications, and industrial applications, the Galleon One 48V provides seamless power backup and protection against voltage fluctuations.

Specifications last updated 27 March 2026

Voltronic Galleon One 48V full specifications

Electrical

Voltage230 VAC
Voltage Range110-280 VAC
Frequency Range46–54 Hz or 56–64 Hz
Power Factor≥ 0.98 @ Nominal Voltage (100% Load)
THDi≤ 10%
Output Voltage230 VAC ± 5%
Frequency Range (Batt. Mode)50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Harmonic Distortion≤ 3% THD (Linear Load), ≤ 5% THD (Non-linear Load)
Transfer Time0ms
Inverter to Bypass4 ms (Typical)
WaveformPure Sinewave
Line Mode93%
ECO Mode98%
Battery Mode93%
Battery Voltage48 VDC
Operating Voltage Range40–66 VDC
Floating Charge Voltage54 VDC
Overcharge Protection66 VDC
Charging Current (max.)60 A
Communication InterfaceRS232 & USB

Mechanical

Dimension, D x W x H(mm)450 x 190 x 336
Net Weight (kgs)14 / 15
Weight14 / 15

Environmental

Humidity0 to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C to 50°C
Storage Temperature-15°C to 60°C
