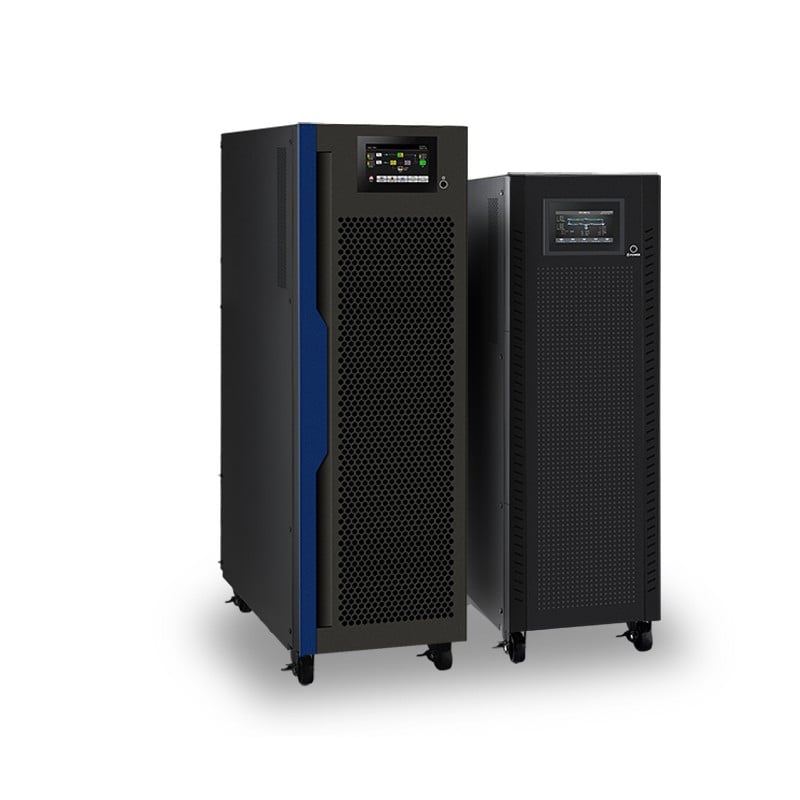

Voltronic Power Galleon III 1KVA-3KVA

Voltronic Galleon III 1KVA-3KVA

Discover the Voltronic Power Galleon III 1KVA-3KVA Online UPS with 200-240 VAC output and precise voltage regulation for reliable power.

  • Voltage: 200-240 VAC
  • Voltage Range: 110-300 VAC
  • Power Factor: >= 0.99
AED 3,200incl. VAT

In stock

Full Specifications

Voltronic Galleon III 1KVA-3KVA features

High efficiency: 92% for 1kva,

High efficiency: 92% for 1kva, 93% for 2kva, 94% for 3kva

True double-conversion

Microprocessor control optimizes reliability

Input power factor correction 0.99

Output power factor 1.0

50/60 Hz Frequency Converter Mode

Wide input voltage (110 V

Wide input voltage (110 V – 300 V)

ECO mode for energy saving

Smart battery charger design to

Smart battery charger design to optimize battery performance

Comprehensive display allows easy monitoring

Comprehensive display allows easy monitoring and access of UPS status

SNMP/USB/RS-232 multiple communications

Generator compatible

About the Voltronic Galleon III 1KVA-3KVA

The Voltronic Power Galleon III 1KVA-3KVA Online UPS is engineered to deliver superior power protection with a nominal voltage range of 200-240 VAC. Its advanced design ensures consistent performance with an input voltage range of 110-300 VAC and frequency adaptability from 40 Hz to 70 Hz. Ideal for critical applications such as data centers, telecommunications, and industrial equipment, ensuring uninterrupted power supply and protection.

Specifications last updated 27 March 2026

Voltronic Galleon III 1KVA-3KVA full specifications

Electrical

Nominal Voltage200/208/220/230/240 VAC
Input Voltage Range110 – 300 VAC / 110 – 300 VAC / 160 – 300 VAC / 160 – 300 VAC / 160 – 300 VAC / 160 – 300 VAC
Frequency Range40 Hz ~ 70 Hz
Power Factor≥ 0.99 @ nominal voltage (100% load)
THD≤ 5% @ nominal voltage (100% load)
Output Voltage200/208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode)± 1%
Frequency Range (Synchronized Range)47 ~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode)50 Hz ± 1 Hz / 60Hz ± 0.1 Hz / 60Hz ± 0.1 Hz / 60Hz ± 0.1 Hz / 60Hz ± 0.1 Hz / 60Hz ± 0.1 Hz
Current Crest Ratio3:1
Harmonic Distortion≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-linear Load)
Transfer Time0 ms
Waveform (Batt. Mode)Pure Sinewave
ECO mode @ full charged battery96% / 97% / 97% / 97% / 97% / 97%
AC Mode @ full charged battery92% / 92% / 92% / 93% / 93% / 94%
Battery Mode86% / 89% / 89% / 89% / 89% / 91%
Battery Type12 V / 9 Ah / 12 V / 7 Ah / 12 V / 9 Ah / 12 V / 9 Ah / 12 V / 7 Ah / 12 V / 9 Ah
Numbers2 / 3 / 3 / 4 / 6 / 6
Typical Recharge Time4 hours recover to 90% capacity for internal battery
Charging Current (CC)1.5A
Charging Voltage (FV)27.4VDC ± 1% / 41.0VDC ± 1% / 41.0VDC ± 1% / 54.8VDC ± 1% / 82.2VDC ± 1% / 82.2VDC ± 1%
Smart RS-232 or USBSupports Windows® family, Linux, Unix and MAC
Optional external SlotPower management from SNMP manager and web browser
EMC/SafetyCE (EMC: EN62040-2 C2)

Mechanical

Dimension, D x W x H (mm)282 x 145 x 220 / 397 x 145 x 220 / 397 x 145 x 220 / 397 x 145 x 220 / 421 x 190 x 318 / 421 x 190 x 318
Net Weight (kgs)9.8 / 11.4 / 13.8 / 17 / 22.5 / 26.2
Weight9.8 / 11.4 / 13.8 / 17 / 22.5 / 26.2

Environmental

Humidity20-90 % RH @ 0- 50°C (non-condensing)
Noise LevelLess than 50dB(A) @ 1 Meter with Fan speed control

Certifications

  • CE
