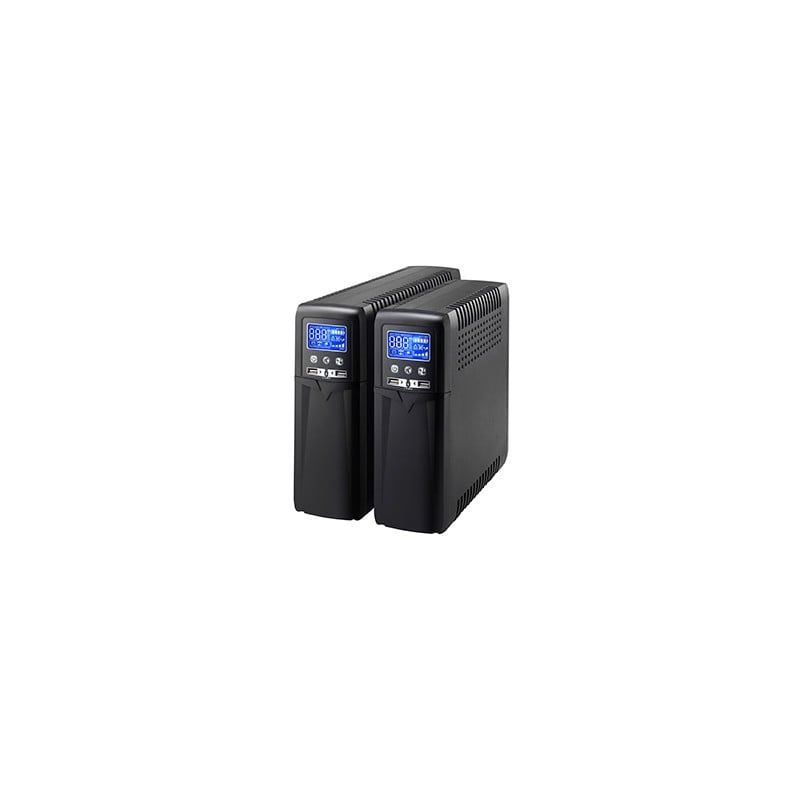

Voltronic Power Atlas Line Interactive

Voltronic Atlas Line Interactive

Discover the Voltronic Power Atlas Line Interactive UPS with 110/120 or 220/230/240 VAC voltage, ensuring reliable power protection.

  • Voltage: 110-240 VAC
  • Voltage Range: 81-290 VAC
  • Frequency Range: 50/60 Hz ± 5Hz
AED 2,200incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Atlas Line Interactive features

Excellent microprocessor control guarantees high

Excellent microprocessor control guarantees high reliability

Boost and Buck AVR for

Boost and Buck AVR for voltage stabilization

Auto restart while AC is

Auto restart while AC is recovering

Pure sine wave

Off-mode charging

Cold-start function

Built-in USB communication port and

Built-in USB communication port and RJ-45 phone protection

Provides battery backup and surge

Provides battery backup and surge protected outputs

Easy replacement battery compartment

Hot-swappable battery design

Optional Coax Surge Protection for

Optional Coax Surge Protection for TV antenna/network

Optional 5V USB charger port

Optional 5V USB charger port for mobile devices

Site Wiring Fault for 120VAC

Site Wiring Fault for 120VAC models

Battery Independent: turn ON and

Battery Independent: turn ON and operate in the AC mode providing surge protection and AVR function without the batteries connected

Comply with energy Star 2.0

Comply with energy Star 2.0 for 120VAC models

About the Voltronic Atlas Line Interactive

The Voltronic Power Atlas Line Interactive UPS is designed to provide seamless power protection with a voltage range of 110/120 VAC or 220/230/240 VAC. Its auto-sensing frequency range of 50/60 Hz ensures adaptability and efficiency, making it an ideal choice for safeguarding your critical devices. The Atlas Line Interactive UPS is perfect for home offices, small businesses, and IT equipment, offering reliable power backup and protection against voltage fluctuations.

Specifications last updated 27 March 2026

Voltronic Atlas Line Interactive full specifications

Electrical

Voltage110/120 VAC or 220/230/240 VAC / 110/120 VAC or 220/230/240 VAC / 110/120 VAC or 220/230/240 VAC / 110/120 VAC or 220/230/240 VAC / 110/120 VAC or 220/230/240 VAC
Voltage Range81~134VAC/89~145VAC or 162~268VAC/170~280VAC/177~290VAC / 81~134VAC/89~145VAC or 162~268VAC/170~280VAC/177~290VAC / 81~134VAC/89~145VAC or 162~268VAC/170~280VAC/177~290VAC / 81~134VAC/89~145VAC or 162~268VAC/170~280VAC/177~290VAC / 81~134VAC/89~145VAC or 162~268VAC/170~280VAC/177~290VAC
Frequency Range50/60 Hz ± 5Hz(Auto sensing)
AC Voltage Regulation (Batt. Mode)±10%
Frequency Range (Batt. Mode)60 Hz or 50 Hz ±1 Hz
Transfer Time6ms typical, 10ms max
Waveform (Batt. Mode)Pure Sinewave
Battery Type & Number12 V/7 Ah x 1 / 12 V/9 Ah x 1 / 12 V/9 Ah x 1 / 12 V/7 Ah x 2 / 12 V/9 Ah x 2
Typical Recharge Time4-6 hours recover to 90% capacity
USB Charger portsType A x 2
Output Voltage5 V±5%
Load current2.1A(MAX)
LCD DisplayInput/output voltage, input/output frequency, load in VA/Watts, battery capacity, estimated remaining runtime, site wiring fault indications.
Battery ModeSounding every 10 seconds
Low BatterySounding every second
OverloadSounding every 0.5 second
FaultContinuously sounding
Optional USB PortSupports Windows® Family, Linux and MAC
Compliance & Standards110/120VAC model: cTUVus (standard:UL 1778), FCC Part 15 Class B, ENERGY STAR (USA) / 220/230/240VAC model: CE, EN 62040-1:2008/A1:2013, IEC 62040-1:2008/A1:2013 / 220/230/240VAC model: CE, EN 62040-1:2008/A1:2013, IEC 62040-1:2008/A1:2013 / 220/230/240VAC model: CE, EN 62040-1:2008/A1:2013, IEC 62040-1:2008/A1:2013 / 220/230/240VAC model: CE, EN 62040-1:2008/A1:2013, IEC 62040-1:2008/A1:2013

Mechanical

Dimension, D x W x H (mm)288 x 99 x 280 / 288 x 99 x 280 / 288 x 99 x 280 / 410 x 99 x 280 / 410 x 99 x 280
Net Weight (kgs)7.4 / 7.9 / 8.5 / 11.8 / 13.1
Weight7.4 / 7.9 / 8.5 / 11.8 / 13.1

Environmental

Full ProtectionOverload, discharge, and overcharge protection
Humidity0-90 % RH @ 0- 40°C (Non-condensing)
Noise LevelLess than 40dB / Less than 40dB / Less than 40dB / Less than 45dB / Less than 45dB

Certifications

  • cTUVus
  • FCC
  • ENERGY STAR
  • CE
  • EN 62040-1
  • IEC 62040-1
