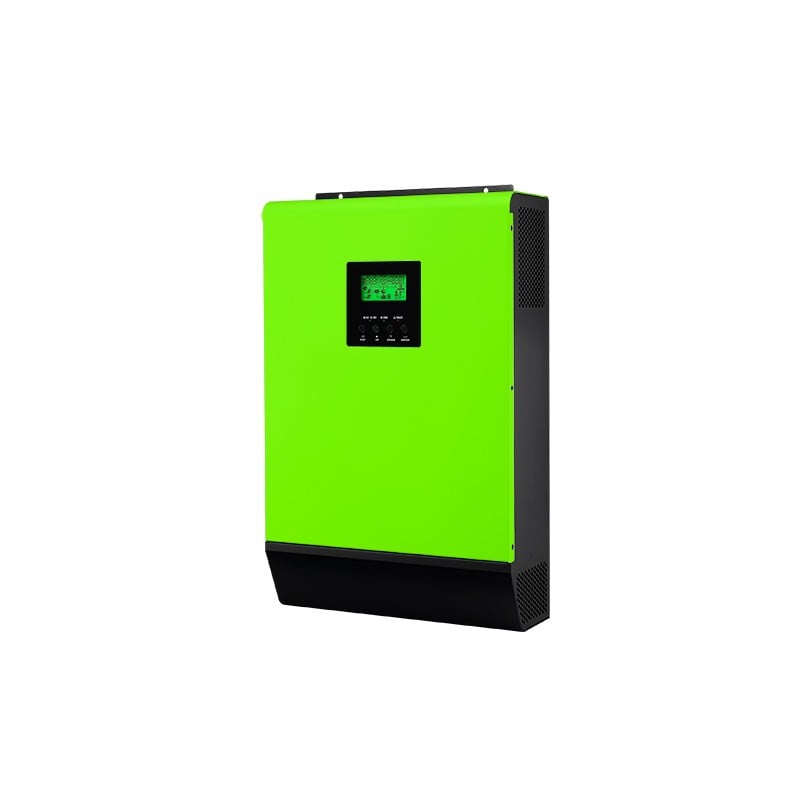

Voltronic Power InfiniSolar 3P 10KW/15KW

Voltronic InfiniSolar 3P 10KW/15KW

Discover the InfiniSolar 3P 10KW/15KW inverter by Voltronic Power with 720 VDC nominal voltage and 400 VAC output.

  • DC Voltage Range: 720-900 VDC
  • Start-up Voltage: 320-350 VDC
  • MPP Voltage Range: 400-800 VDC
  • MPP Trackers / Max Current: 2 / 18.6-37.5A
AED 12,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic InfiniSolar 3P 10KW/15KW features

Self-consumption and feed-in to the

Self-consumption and feed-in to the grid

Programmable supply priority for PV,

Programmable supply priority for PV, Battery or Grid

User-adjustable battery charging current suits

User-adjustable battery charging current suits different types of batteries

Programmable multiple operations modes: Grid

Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup

Built-in Timer for various mode

Built-in Timer for various mode of on/off operation

Multiple communication for USB, RS-232,

Multiple communication for USB, RS-232, Modbus and SNMP

Monitoring software for real time

Monitoring software for real time status display and control

Custom-made firmware by ODM contract

Parallel operation up to 6

Parallel operation up to 6 units

About the Voltronic InfiniSolar 3P 10KW/15KW

The InfiniSolar 3P 10KW/15KW by Voltronic Power is a high-performance inverter designed for optimal energy conversion. With a nominal DC voltage of 720 VDC and a versatile MPP voltage range of 400 VDC to 800 VDC, it ensures efficient power management for various applications. Ideal for residential and commercial solar power systems, the InfiniSolar 3P 10KW/15KW inverter supports reliable energy conversion and distribution.

Specifications last updated 27 March 2026

Voltronic InfiniSolar 3P 10KW/15KW full specifications

Electrical

Maximum Discharge Cuurent Imax (8/20s) kA40
Nominal Discharge Current In (8/20s) KA20
Response Time (ns)<25
Voltage protection Level Up (VDC) KV≤2.0
Nominal DC Voltage / Maximum DC Voltage720 VDC / 900 VDC / 720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage320 VDC / 350 VDC / 320 VDC / 350 VDC
MPP Voltage Range400 VDC - 800 VDC / 400 VDC - 800 VDC
Number of MPP Trackers / Maximum Input Current2 / 2 x 18.6A / 2 / 3 x 37.5A, 18.6A
Nominal Output Voltage230 VAC (P-N) / 400 VAC (P-P) / 230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range184 - 265VAC* per phase / 184 - 264.5VAC per phase
Nominal Output Current14.5A per phase / 21.7A per phase
Power Factor> 0.99
Maximum Conversion Efficiency (DC/AC)96% / 96%
European Efficiency @Nominal95% / 95%
AC Start-up Voltage / Auto Restart Voltage120 - 140 VAC per phase / 180 VAC per phase / 120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range170 - 280 VAC per phase / 170 - 280 VAC per phase
Maximum AC Input Current40 A / 40 A
Nominal DC Voltage48 VDC
Maximum Charging CurrentDefault 60A, 10A - 200A (Adjustable) / Default 60A, 5A - 300A (Adjustable)
Communication PortRS-232/USB / RS-232, USB and Dry contact
Intelligent SlotOptional SNMP, Modbus and AS-400 cards available

Mechanical

Dimension, D x W x H (mm)167.2 x 500 x 622 / 219 x 650 x 820
Net Weight (kgs)45 / 60
Weight45 / 60

Environmental

Humidity0 - 90% RH (Non-Condensing)
Operating Temperature-10 to 55°C
Altitude0 - 1000 m

Certifications

  • CE
  • IEC 62109-1
  • IEC 62109-2
