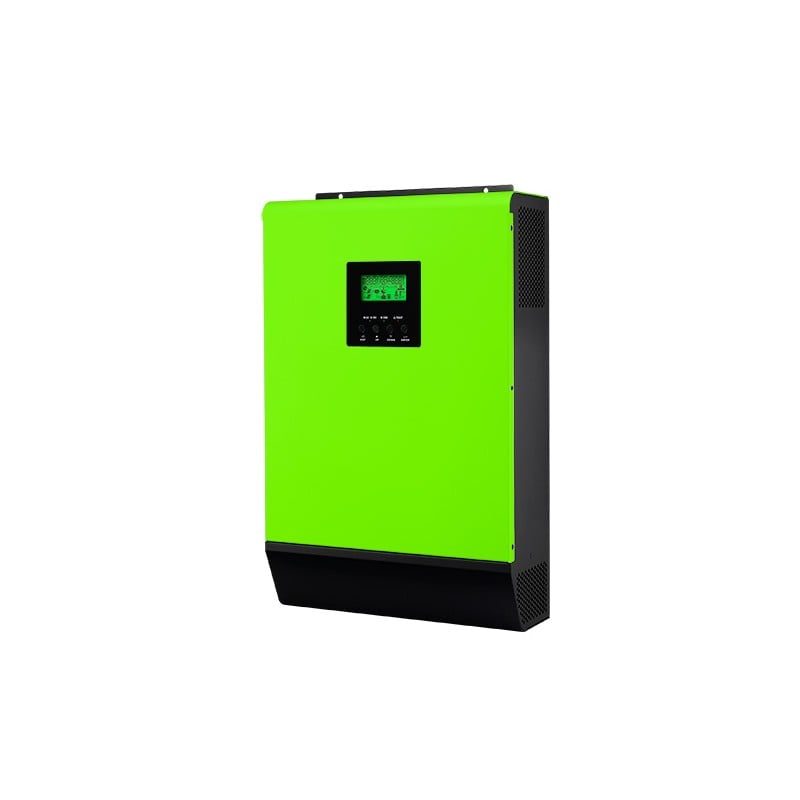

Voltronic Power InfiniSolar WP LV 12kw Premium

Voltronic InfiniSolar WP LV 12kw Premium

Discover the InfiniSolar WP LV 12kw Premium inverter by Voltronic Power with a max DC voltage of 600 VDC and versatile output options.

  • Maximum DC Voltage: 600 VDC
  • Start-up Voltage / Initial Feeding Voltage: 125 VDC / 160 VDC
  • MPP Voltage Range: 120 VDC - 550 VDC
  • Number of MPP Trackers / Maximum Input Current: 2 / 18A (MAX 30A)
AED 11,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic InfiniSolar WP LV 12kw Premium features

Support multiple input & output:

Support multiple input & output: Split Phase 120V/240V Split phase, 120V/208V Split phase

Built-in 300A DC breaker and

Built-in 300A DC breaker and 60A AC breaker

Built-in AC coupled function

Built-in WiFi for mobile monitoring

Built-in WiFi for mobile monitoring (APP is available)

Accepts second input power source,

Accepts second input power source, generator input compatible

Built-in arc fault detection (AFD)

Built-in arc fault detection (AFD) and rapid shutdown (RSD)

External CT sensor to guarantee

External CT sensor to guarantee 100% self-consumption

Built-in communication port for BMS

Built-in communication port for BMS (RS485)

User-adjustable charging current and voltage

Parallel operation up to 6

Parallel operation up to 6 units

About the Voltronic InfiniSolar WP LV 12kw Premium

The InfiniSolar WP LV 12kw Premium by Voltronic Power is a cutting-edge inverter designed for optimal performance and efficiency. With a maximum DC voltage of 600 VDC and a wide MPP voltage range, this inverter is perfect for diverse energy needs. Ideal for residential and commercial solar installations, the InfiniSolar WP LV 12kw Premium ensures reliable power conversion and seamless integration with various grid systems.

Specifications last updated 27 March 2026

Voltronic InfiniSolar WP LV 12kw Premium full specifications

Electrical

Maximum DC Voltage600 VDC
Start-up Voltage / Initial Feeding Voltage125 VDC / 160 VDC
MPP Voltage Range120 VDC - 550 VDC
Number of MPP Trackers / Maximum Input Current2 / 18A (MAX 30A)
Nominal Output Voltage120 VAC (P-N), 208 VAC (P-P), 240 VAC (P-P)
Output Voltage Range105.5 VAC - 132 VAC (per phase)
Nominal Output Current41.7 A per phase
Power Factor0.9 lag to 0.9 lead
Maximum Conversion Efficiency (DC/AC)96%
DC Voltage Range / Nominal Voltage40-62 VDC / 48 VDC
Maximum Solar Charging Current200A
Maximum AC Charging Current200A
Maximum Charging Current200A
Maximum PV Input Power12000W
Efficiency (DC to AC)91%
Inrush Current/Duration50 A per phase / 20ms
Maximum Output Fault Current/Duration90 A per phase / 1ms
AC Start-up Voltage85 VAC per phase
Nominal Frequency50 Hz / 60 Hz
Inrush Input Current60 A / 1ms

Mechanical

Dimension, D x W x H (mm)215.5 x 515 x 798
Net Weight (kgs)49

Environmental

Operating Temperature-25°C to 60°C (+45°C derating)
SafetyUL1741SA, UL1741SB, CSA 22.2.107.1, CEC
Grid Connection StandardIEEE 1547.1:2020, IEEE 1547:2018, California Rule 21, HECO Rule 14H
EMCFCC Part 15 Class B
PV DC Switch - NEC 690.15Yes
Ground Fault Detection – NEC 690.5Yes
PV Rapid Shutdown Protection – NEC 690.12Yes
PV Arc Fault Detection – NEC 690.11Yes
PV Input Lightning ProtectionYes
3 x 60A AC Input and Output BreakerBuilt-in
BatteryBuilt-in

Certifications

  • UL1741SA
  • UL1741SB
  • CSA 22.2.107.1
  • CEC
  • IEEE 1547.1:2020
  • IEEE 1547:2018
  • FCC Part 15 Class B
