Voltronic Power

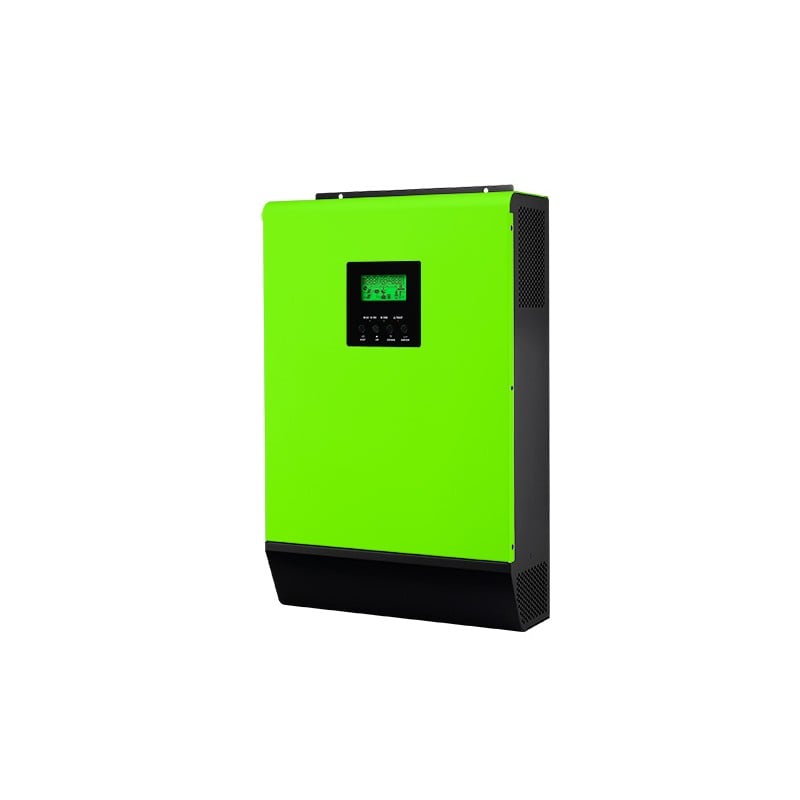

InfiniSolar V II TWIN 6kw

Discover the InfiniSolar V II TWIN 6kw inverter by Voltronic Power with 360 VDC nominal DC voltage and 220/230/240 VAC output.

Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage: 130VDC / 150 VDC
MPP Voltage Range: 120 VDC - 430 VDC
Number of MPP Trackers / Maximum Input Current: 1 / 27A

4,800 AEDincl. VAT

Features

Maximum PV input current 27A

Dual outputs for smart load

Dual outputs for smart load management

Programmable supply priority for PV,

Programmable supply priority for PV, Battery or Grid

User-adjustable charging current and voltage

Programmable multiple operation modes: Grid-tie,

Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup

Monitoring software for real-time status

Monitoring software for real-time status display and control

Parallel operation up to 9

Parallel operation up to 9 units

Overview

The InfiniSolar V II TWIN 6kw by Voltronic Power is a cutting-edge inverter designed for optimal performance and efficiency. With a nominal DC voltage of 360 VDC and a flexible output voltage range, it is ideal for various energy solutions. Perfect for residential and commercial solar power systems, the InfiniSolar V II TWIN 6kw ensures reliable energy conversion and distribution.

Frequently Asked Questions

The maximum conversion efficiency of the InfiniSolar V II TWIN 6kw is 95%, ensuring optimal energy conversion from DC to AC.

The inverter is designed to work with a nominal DC voltage of 48 VDC, making it compatible with most standard battery systems that match this specification.

The specific dimensions and weight are not provided in the key specifications, but it is designed for robust performance and easy installation.

Installation requires adherence to the nominal DC and AC voltage specifications, and it should be installed in a location with 0-90% non-condensing humidity.

Voltronic Power typically offers a standard warranty on their products, but specific terms should be confirmed with the retailer or distributor.

The inverter comes with standard certifications, ensuring compliance with industry standards for safety and performance.

The inverter operates effectively in environments with 0-90% relative humidity, provided there is no condensation.

Key features include a high power factor of >0.99, a wide MPP voltage range of 120 VDC - 430 VDC, and a maximum solar charging current of 120 A, providing efficient and versatile energy management.

InfiniSolar V II TWIN 6kw

Features

Maximum PV input current 27A

Dual outputs for smart load

Programmable supply priority for PV,

User-adjustable charging current and voltage

Programmable multiple operation modes: Grid-tie,

Monitoring software for real-time status

Parallel operation up to 9

Overview

Frequently Asked Questions
