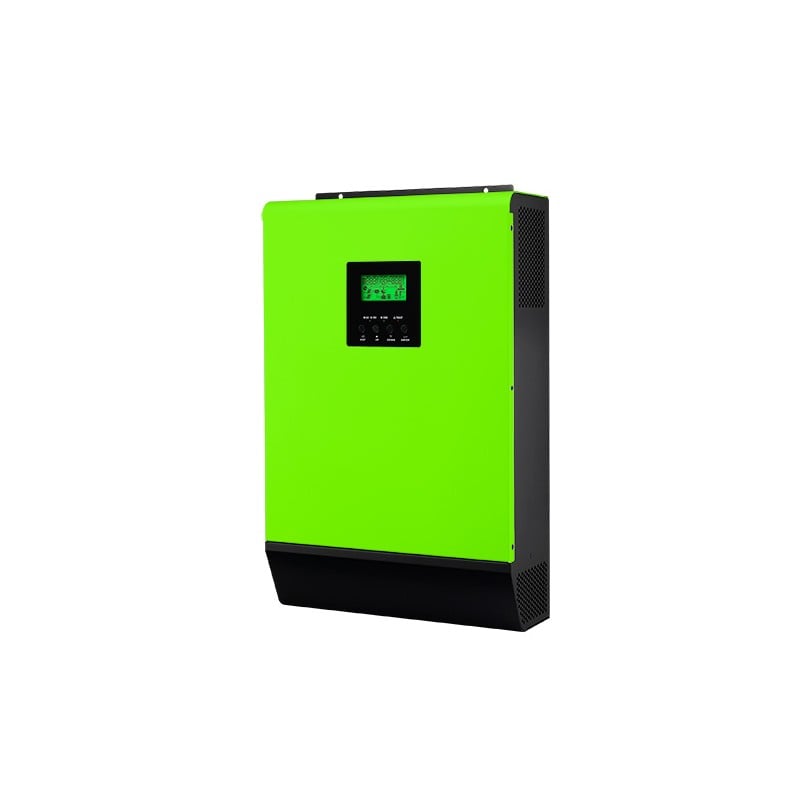

Voltronic Power InfiniSolar TX-PA

Voltronic InfiniSolar TX-PA

Discover the InfiniSolar TX-PA inverter by Voltronic Power with 720 VDC nominal voltage and 230 VAC output for efficient energy solutions.

  • Nominal DC Voltage / Maximum DC Voltage: 720 VDC / 950 VDC
  • Start-up Voltage / Initial Feeding Voltage: 500 VDC / 550 VDC
  • MPP Voltage Range: 460 VDC – 900 VDC
  • Full Power MPP Voltage Range: 625 VDC – 900 VDC
AED 9,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic InfiniSolar TX-PA features

Pure sine wave output

Self-consumption and Feed-in to the

Self-consumption and Feed-in to the grid

Programmable supply priority for PV,

Programmable supply priority for PV, Battery or Grid

True galvanic isolation transformer design

User-adjustable charging current

Programmable multiple operation modes: Grid-tie,

Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup

Built-in timer for various mode

Built-in timer for various mode of on/off operation

Multiple communication for USB, RS-232,

Multiple communication for USB, RS-232, Modbus and SNMP

Monitoring software for real-time status

Monitoring software for real-time status display and control

Parallel operation up to 4

Parallel operation up to 4 units

About the Voltronic InfiniSolar TX-PA

The InfiniSolar TX-PA by Voltronic Power is a cutting-edge inverter designed for optimal energy conversion. With a nominal DC voltage of 720 VDC and a flexible MPP voltage range of 460 VDC to 900 VDC, this inverter ensures reliable performance and efficiency. Ideal for residential and commercial solar power systems, the InfiniSolar TX-PA supports seamless integration with grid-tied applications, ensuring stable and efficient energy distribution.

Specifications last updated 27 March 2026

Voltronic InfiniSolar TX-PA full specifications

Electrical

Nominal DC Voltage / Maximum DC Voltage720 VDC / 950 VDC
Start-up Voltage / Initial Feeding Voltage500 VDC / 550 VDC
MPP Voltage Range460 VDC – 900 VDC
Full Power MPP Voltage Range625 VDC – 900 VDC
Number of MPP Trackers / Maximum Input Current1 / 72A
Nominal Output Voltage230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range195.5 - 253 VAC per phase
Output Frequency Range49 – 51 Hz or 59.3 – 60.5 Hz
Nominal Output Current43.5 A per phase
Power Factor1
Maximum Conversion Efficiency (DC/AC)95%
AC Start-up Voltage / Auto Restart Voltage150 - 170 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range170 - 280 VAC per phase
Maximum AC Input Current43.5 A per phase
Output WaveformPure Sinewave
Efficiency (DC to AC)>91%
Nominal Battery Voltage/Charging Voltage Range384 VDC / 384 VDC ~ 480 VDC
Maximum Charging Current80A
Communication PortRS-232/USB
Intelligent SlotOptional SNMP, GPRS, WIFI, Modbus cards available

Mechanical

Dimension, D x W x H (mm)430 x 715 x 1021
Net Weight (kgs)223

Environmental

Humidity0 – 90% RH (Non-Condensing)
Operating Temperature-10 to 55°C
Altitude0 – 1000 m
