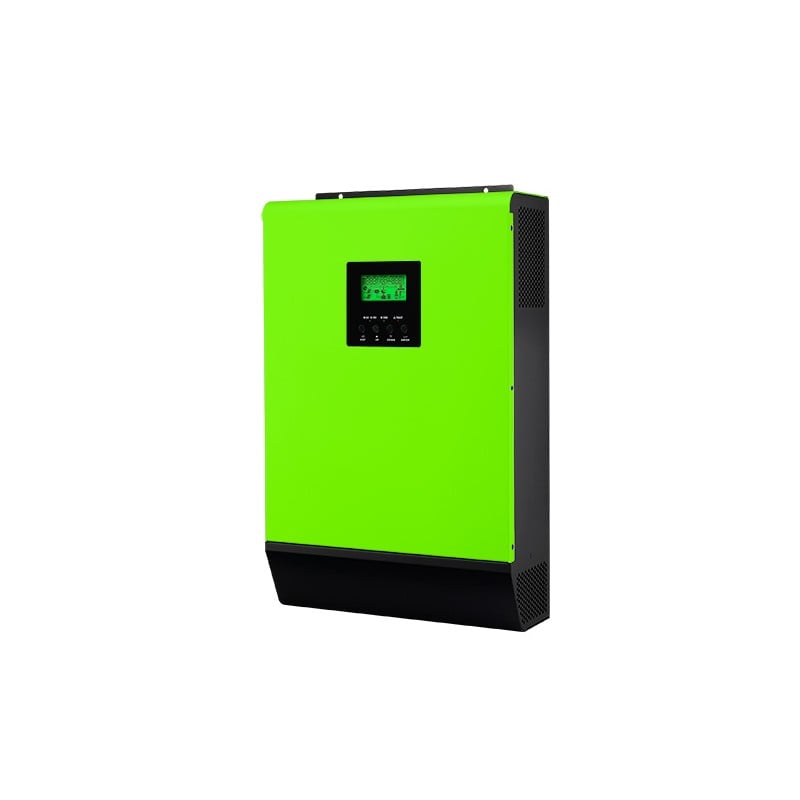

Voltronic Power Infini V 4 WP Plus

Voltronic Infini V 4 WP Plus

Discover the Infini V 4 WP Plus inverter by Voltronic Power with a max DC voltage of 500 VDC and versatile output voltage range.

  • Maximum DC Voltage: 500 VDC
  • Start-up Voltage / Initial Feeding Voltage: 80 VDC / 150 VDC
  • MPP Voltage Range: 120 VDC - 450 VDC
  • Number of MPP Trackers / Maximum Input Current: 2 / 21A
AED 6,973incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Infini V 4 WP Plus features

IP65 waterproof and dustproof

Built-in 2 MPP trackers

Dual outputs for smart load

Dual outputs for smart load control

Two independent AC power sources

Programmable supply priority for PV,

Programmable supply priority for PV, Battery or Grid

Built-in communication port for BMS

Built-in communication port for BMS (RS485), Wi-Fi

User-adjustable charging current and voltage

Programmable multiple operation modes

Parallel operation up to 9

Parallel operation up to 9 units

Optional IMI LCD Design for

Optional IMI LCD Design for easy configuration

About the Voltronic Infini V 4 WP Plus

The Infini V 4 WP Plus by Voltronic Power is a state-of-the-art inverter designed to optimize energy efficiency. With a maximum DC voltage of 500 VDC and a selectable output voltage range, it offers unparalleled flexibility for various applications. Ideal for residential and commercial solar power systems, the Infini V 4 WP Plus ensures reliable energy conversion and efficient power management.

Specifications last updated 27 March 2026

Voltronic Infini V 4 WP Plus full specifications

Electrical

Maximum DC Voltage500 VDC
Start-up Voltage / Initial Feeding Voltage80 VDC / 150 VDC
MPP Voltage Range120 VDC - 450 VDC
Number of MPP Trackers / Maximum Input Current2 / 21A
Nominal Output Voltage220/230/240 VAC
Output Voltage Range184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
Nominal Output Current26A
Power Factor> 0.99
Maximum Conversion Efficiency (DC/AC)95%
Communication PortUSB or RS-232/Dry Contact/RS485
SafetyIEC 62109, IEC 62116, IEC 61727, IEC 61683
Grid Connection StandardEN 50549-1, VDE-AR-N4105

Mechanical

Dimension, D x W x H (mm)192 x 414 x 630
Net Weight (kgs)29

Environmental

AC Start-up Voltage / Auto Restart Voltage60 - 80 VAC / 180 VAC
Acceptable Input Voltage Range90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current40A
Humidity0 - 100% RH (No Condensing)
Operating Temperature-10°C to 50°C

Certifications

  • IEC 62109
  • IEC 62116
  • IEC 61727
  • IEC 61683
  • EN 50549-1
  • VDE-AR-N4105
