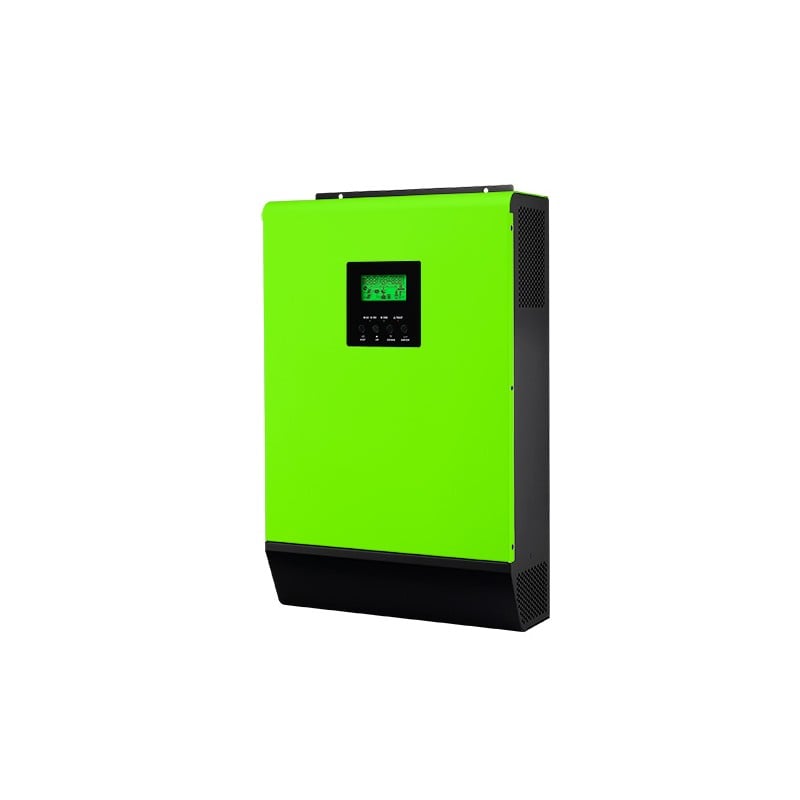

Voltronic Power InfiniSolar TX 3P/3P

Voltronic InfiniSolar TX 3P/3P

Discover the InfiniSolar TX 3P/3P inverter by Voltronic Power with 500 VDC nominal voltage and 230 VAC output.

  • DC Voltage Range: 500-950 VDC
  • MPPT Voltage Range: 250-900 VDC
  • Start-up Voltage: 220-500 VDC
AED 8,500incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic InfiniSolar TX 3P/3P features

Pure sine wave output

Self-consumption and Feed-in to the

Self-consumption and Feed-in to the grid

Programmable supply priority for PV,

Programmable supply priority for PV, Battery or Grid

True galvanic isolation transformer design

User-adjustable charging current

Programmable multiple operation modes: Grid-tie,

Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup

Built-in timer for various mode

Built-in timer for various mode of on/off operation

Multiple communication for USB, RS-232,

Multiple communication for USB, RS-232, Modbus and SNMP

Monitoring software for real-time status

Monitoring software for real-time status display and control

About the Voltronic InfiniSolar TX 3P/3P

The InfiniSolar TX 3P/3P by Voltronic Power is a high-performance inverter designed for optimal energy conversion. With a nominal DC voltage of 500 VDC and an output voltage range of 184 - 265 VAC per phase, it ensures reliable power delivery for various applications. Ideal for residential, commercial, and industrial applications, the InfiniSolar TX 3P/3P provides efficient energy conversion and stable power output.

Specifications last updated 27 March 2026

Voltronic InfiniSolar TX 3P/3P full specifications

Electrical

Nominal DC Voltage / Maximum DC Voltage500 VDC / 750 VDC / 500 VDC / 750 VDC / 720 VDC / 950 VDC
Start-up Voltage / Initial Feeding Voltage220 VDC / 250 VDC / 220 VDC / 250 VDC / 500 VDC / 550 VDC
MPPT Voltage Range250 VDC ~ 700 VDC / 250 VDC ~ 700 VDC / 550 VDC ~ 900 VDC
Full power MPPT Voltage Range450 VDC ~ 700 VDC / 450 VDC ~ 700 VDC / 625 VDC ~ 900 VDC
Number of MPPT Trackers / Maximum Input Current1 / 20A / 1 / 33A / 1 / 48A
Nominal Output Voltage230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range184 - 265 VAC per phase
Output Frequency Range47.5 - 51.5 Hz or 59.3 - 60.5 Hz
Nominal Output Current8.7 A per phase / 14.3 A per phase / 14.5 A per phase
Power Factor> 0.99
Maximum Conversion Efficiency (DC/AC)91%
Nominal DC Voltage192 VDC / 192 VDC / 384 VDC
Maximum Charging Current32A / 52A / 50A
Dimension, D x W x H (mm)815 x 300 x 830 / 559 x 320 x 909 / 559 x 320 x 909
Net Weight (kg)102 / 115 / 120
Weight102 / 115 / 120
Communication PortRS-232/USB
Intelligent SlotOptional SNMP, GPRS, WIFI, Modbus cards available

Environmental

Humidity0 - 90% RH (Non-Condensing)
Operating Temperature-10 to 55°C
Altitude0 - 1000 m*

Certifications

  • VDE-4105
