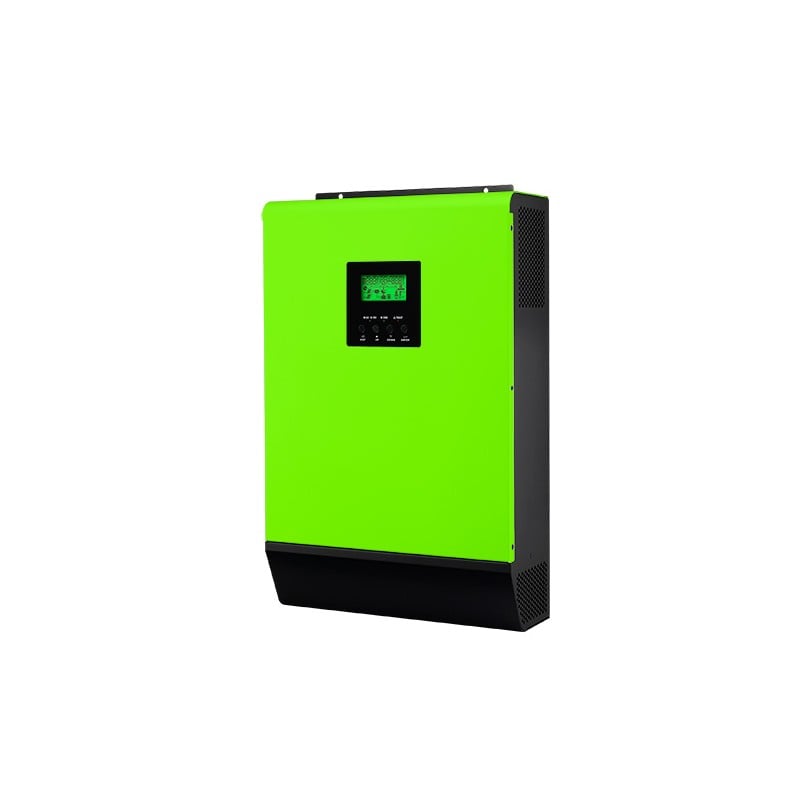

Voltronic InfiniSolar

Discover Voltronic Power's InfiniSolar Inverter with 300 VDC nominal voltage and 101-127 VAC output, ideal for efficient energy conversion.

DC Voltage Range: 300-900 VDC
MPP Voltage Range: 120-850 VDC
MPP Trackers: 1-2

AED 3,500incl. VAT

In stock

Full Specifications Download datasheet (PDF)

Voltronic InfiniSolar features

Self-consumption and feed-in to the

Self-consumption and feed-in to the grid

Programmable supply priority for PV,

Programmable supply priority for PV, Battery or Grid

User-adjustable battery charging current

Multiple communication for USB, RS-232,

Multiple communication for USB, RS-232, Modbus and SNMP

Parallel operation up to 6

Parallel operation up to 6 units for 5KW / 10KW and 15KW

About the Voltronic InfiniSolar

The InfiniSolar Inverter by Voltronic Power is engineered for superior energy conversion efficiency. With a nominal DC voltage of 300 VDC and a versatile output voltage range of 88 to 127 VAC, this inverter is perfect for various power applications. InfiniSolar is ideal for residential and commercial solar power systems, providing reliable energy conversion and supporting diverse voltage requirements.

Specifications last updated 27 March 2026

Voltronic InfiniSolar full specifications

Electrical

Nominal DC Voltage / Maximum DC Voltage	300 VDC / 350 VDC / 360 VDC / 500 VDC / 720 VDC / 900 VDC / 720 VDC / 900 VDC / 720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage	80 VDC / 120 VDC / 116 VDC / 150 VDC / 225 VDC / 250 VDC / 320 VDC / 350 VDC / 320 VDC / 350 VDC
MPP Voltage Range	120 VDC - 320 VDC / 250 VDC - 450 VDC / 250 VDC - 850 VDC / 400 VDC - 800 VDC / 400 VDC - 800 VDC
Number of MPP Trackers / Maximum Input Current	1 / 1 x 15 A / 1 / 1 x 18 A / 2 / 2 x 10 A / 2 / 2 x 18.6 A / 2 / 3 x 57.6 A; 18.6 A
Nominal Output Voltage	101/110/120/127 VAC / 208/220/230/240 VAC / 208/220/230/240 VAC / 230 VAC (P-N) / 400 VAC (P-P) / 230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range	88 - 127 VAC / 184 - 265 VAC / 184 - 265 VAC / 184 - 265 VAC per phase / 184 - 264.5 VAC per phase
Nominal Output Current	18 A / 13 A / 21 A / 14.5 A per phase / 21.7 A per phase
Power Factor	> 0.99
Maximum Conversion Efficiency (DC/AC)	95% / 96% / 96% / 96% / 96%
European Efficiency @ Vnominal	94% / 95% / 95% / 95% / 95%
Nominal DC Voltage	48 VDC
Maximum Charging Current	Default 25 A, 25 A (Adjustable) / Default 25 A, 50 A (Adjustable) / Default 60 A, 100 A (Adjustable) / Default 60 A, 100 A (Adjustable) / Default 60 A, 50 A (Adjustable)
Communication Port	RS-232/USB / RS-232/USB / RS-232/USB / RS-232, USB and Dry contact / RS-232, USB and Dry contact
Intelligent Slot	Optional SNMP, Modbus and AS-400 cards available

Mechanical

Dimension, D x W x H (mm)	107 x 438 x 480 / 204.2 x 460 x 600 / 167.2 x 500 x 622 / 219 x 560 x 820 / 219 x 560 x 820
Net Weight (kgs)	15.5 / 29 / 40 / 40 / 40
Weight	15.5 / 29 / 40 / 40 / 40

Environmental

Humidity	0 - 90% RH (Non-Condensing)
Operating Temperature	0 to 40°C / 0 to 40°C / 0 to 40°C / -10 to 55°C / -10 to 55°C
Altitude	0 - 1000 m / 0 - 1000 m / 0 - 1000 m / 0 - 3000 m / 0 - 3000 m

Certifications

CE
VDE AR-N 4105
IEC 62109-1
IEC 62109-2

Frequently Asked Questions

The InfiniSolar inverter has a maximum conversion efficiency of 95%, ensuring optimal energy conversion from DC to AC.

Yes, the InfiniSolar inverter is compatible with a wide range of solar panels, operating efficiently within an MPP voltage range of 120 VDC to 320 VDC.

The InfiniSolar inverter measures 107 x 438 x 480 mm and weighs 15.5 kg, making it compact and easy to install.

Installation requires a nominal DC voltage of 48 VDC and a suitable environment to accommodate its dimensions and weight. Professional installation is recommended.

The InfiniSolar inverter comes with a standard warranty period, typically covering defects in materials and workmanship. Please check with the retailer for specific warranty terms.

The InfiniSolar inverter is certified with CE, VDE AR-N 4105, IEC 62109-1, and IEC 62109-2, ensuring compliance with international safety and performance standards.

The InfiniSolar inverter is designed to operate efficiently in a range of environmental conditions, though specific temperature and humidity ranges should be verified in the product manual.

Key features of the InfiniSolar inverter include a high power factor of >0.99, adjustable maximum charging current, and robust communication ports (RS-232/USB), providing flexibility and efficiency in solar power management.
