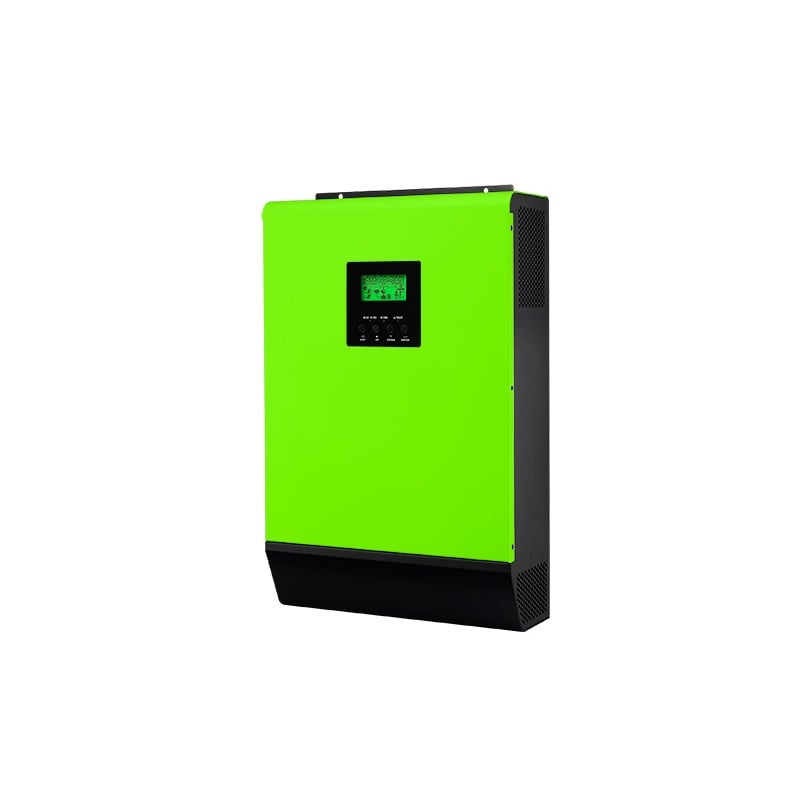

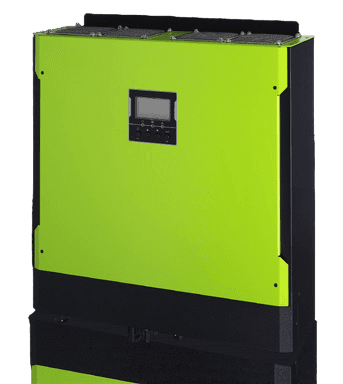

Voltronic Power InfiniSolar E 5.5kw

Voltronic InfiniSolar E 5.5kw

Discover the InfiniSolar E 5.

  • Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC
  • Start-up Voltage / Initial Feeding Voltage: 116 VDC / 150 VDC
  • MPP Voltage Range: 120 VDC - 450 VDC
AED 4,200incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic InfiniSolar E 5.5kw features

Pure sine wave output

Self-consumption and Feed-in to the

Self-consumption and Feed-in to the grid

Programmable supply priority for PV,

Programmable supply priority for PV, Battery or Grid

User-adjustable battery charging current

Programmable multiple operation modes: grid-tie,

Programmable multiple operation modes: grid-tie, off-grid and grid-tie with backup

Built-in timer for various modes

Built-in timer for various modes of on/off operation

Built-in 2 strings of MPP

Built-in 2 strings of MPP trackers

Built-in 60A AC/Solar charger

Optional DC switch

About the Voltronic InfiniSolar E 5.5kw

The InfiniSolar E 5.5kW inverter by Voltronic Power is engineered for optimal performance and efficiency. With a nominal DC voltage of 360 VDC and a versatile output voltage range of 202 to 240 VAC, it is designed to meet diverse energy needs. Ideal for residential and commercial solar power systems, the InfiniSolar E 5.5kW inverter ensures reliable energy conversion and distribution.

Specifications last updated 27 March 2026

Voltronic InfiniSolar E 5.5kw full specifications

Electrical

Nominal DC Voltage / Maximum DC Voltage360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage116 VDC / 150 VDC
MPP Voltage Range120 VDC - 450 VDC
Number of MPP Trackers / Maximum Input Current2 / 2 x 13 A
Nominal Output Voltage202/208/220/230/240 VAC
Output Voltage Range184 - 264.5 VAC*
Max. Output Current23.9 A*
Power Factor> 0.99
Maximum Conversion Efficiency (DC/AC)96%
European Efficiency @ Nominal95%
Nominal DC Voltage48 VDC
Maximum Solar Charge Current100 A
InterfaceRS-232/USB
Communication portsOptional SNMP, Modbus and AS-400 cards
SafetyEN 62109-1, -2; IEC 62040-1, EN IEC 61000-6-2, -6-4; EN IEC 61000-3-11, -3-12
Grid Connection StandardIEC 62717, IEC 62116, EN 50549-1, NRS 097-2-1, VDE 4105, UTE C15-712, G99, CEI-021, AS4777.2
Maximum PV Input Power6500W

Mechanical

Dimension, D x W x H (mm)110 x 450 x 445
Net Weight (kgs)16

Environmental

Humidity0 - 95% RH (Non-condensing)
Operating Temperature0 to 40°C
Altitude0 - 1000 m**

Certifications

  • EN 62109-1
  • IEC 62040-1
  • EN IEC 61000-6-2
  • EN IEC 61000-3-11
