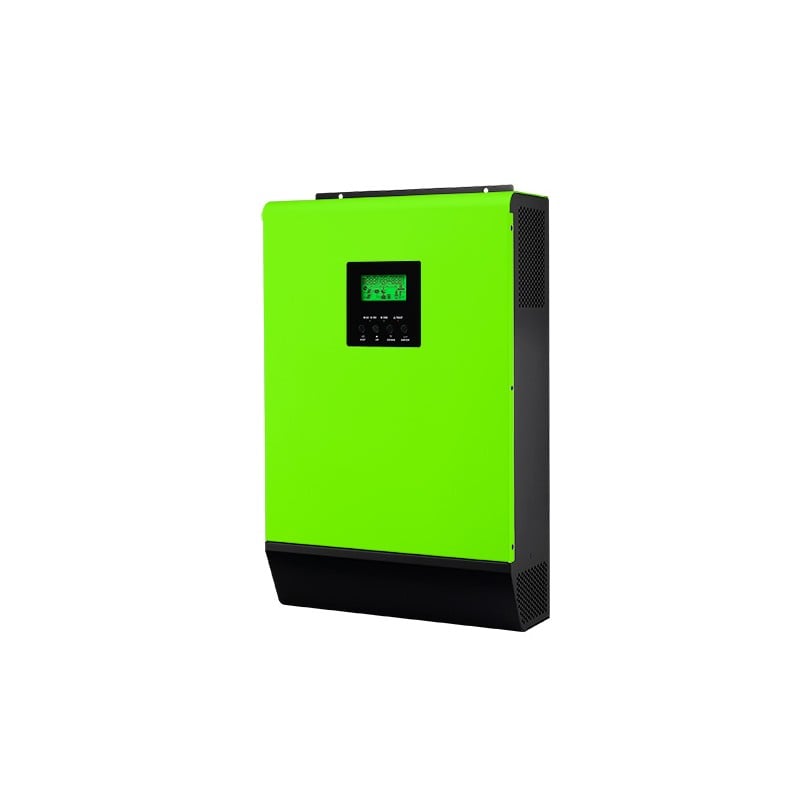

Voltronic Power InfiniSolar WP Elite

Voltronic InfiniSolar WP Elite

Discover Voltronic Power's InfiniSolar WP Elite Inverter with 12000W PV input and dual MPP trackers for optimal energy efficiency.

  • Maximum PV Input Power: 12-24 kW
  • MPP Voltage Range: 400-850 VDC
  • MPP Trackers / Max Current: 2 / 15-36A per tracker
AED 13,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic InfiniSolar WP Elite features

IP66 certified enclosure

User-friendly HMI LCD design and

User-friendly HMI LCD design and easy configuration

Supports energy storage from generator

Dual inputs and dual outputs

Dual inputs and dual outputs for smart energy management

Built-in WiFi with APP for

Built-in WiFi with APP for mobile monitoring

150% unbalanced load support

User-adjustable charging current and voltage

Reserved communication port for BMS

Reserved communication port for BMS (RS485)

Parallel operation up to 6

Parallel operation up to 6 units

About the Voltronic InfiniSolar WP Elite

The InfiniSolar WP Elite by Voltronic Power is a high-performance inverter designed to maximize solar energy efficiency. With a maximum PV input power of 12000W and dual MPP trackers, it ensures optimal power conversion and reliability. Ideal for residential and commercial solar installations, the InfiniSolar WP Elite supports a wide range of applications, ensuring consistent and efficient energy supply.

Specifications last updated 27 March 2026

Voltronic InfiniSolar WP Elite full specifications

Electrical

Maximum Discharge Cuurent Imax (8/20s) kA40
Nominal Discharge Current In (8/20s) KA20
Response Time (ns)<25
Voltage protection Level Up (VDC) KV≤2.0
Maximum PV Input Power12000W / 15000W / 18000W / 24000W
MPP Voltage Range400 VDC - 850 VDC / 420 VDC - 850 VDC / 420 VDC - 850 VDC / 400 VDC - 850 VDC
Number of MPP Trackers / Max Input Current2 / A: 15A, B: 15A / 2 / A: 18A, B: 18A / 2 / A: 27A, B: 18A / 2 / A: 36A, B: 36A
Nominal Output Voltage230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range184 - 265 VAC* per phase
Nominal Output Current11.6 A per phase / 14.5 A per phase / 17.4 A per phase / 21.7 A per phase
Power Factor Range0.9 lag - 0.9 lead
Maximum Conversion Efficiency (DC/AC)>96%
European Efficiency@Nominal>95%
Battery Voltage Range40 - 60 VDC
Maximum Charging Current160 A / 200 A / 240 A / 280 A
Communication PortRS-232, RS-485, USB, CAN and Wi-Fi
Intelligent SlotOptional for SNMP and Modbus cards
SafetyIEC 62116, IEC 61727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019, IEC 61000-3-11:2019, EN 61000-3-12:2011
Grid Connection StandardEN 50549-1, VDE-AR-N-4105
Start-up Voltage / Initial Feeding Voltage150 VDC / 150 VDC
Maximum DC Voltage900 VDC
Efficiency (DC to AC)>93%

Mechanical

Dimension, D x W x H (mm)247 x 500 x 650 / 247 x 500 x 650 / 247 x 500 x 650 / 247 x 504.4 x 714.4
Net Weight (kgs)50 / 54 / 54 / 59
Weight50 / 54 / 54 / 59

Environmental

Humidity0 - 100% RH (Non-condensing)
Operating Temperature-25 to 50°C, > 45°C power derating
Altitude0 - 1000 m**

Certifications

  • IEC 62116
  • IEC 61727
  • IEC 61683
  • IEC 62109
  • IEC 61000-6-2:2019
  • IEC 61000-6-4:2019
  • IEC 61000-3-11:2019
  • EN 61000-3-12:2011
  • EN 50549-1
  • VDE-AR-N-4105
