Compact size with local receptacles
Compact size with local receptacles for easy use

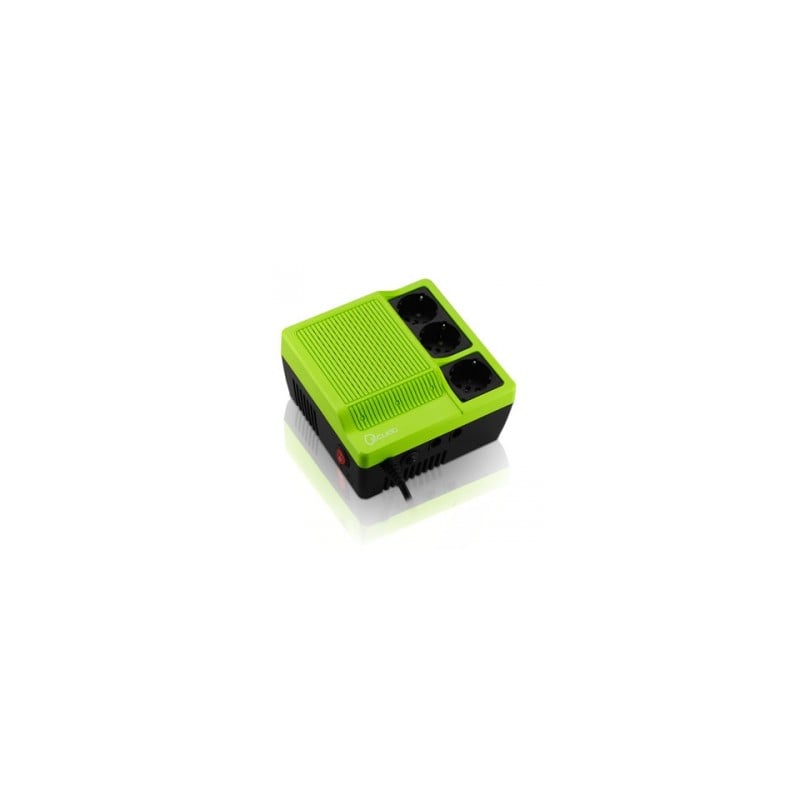

Voltronic Scudo
Discover Voltronic Power's Scudo UPS with 220/230/240 VAC output and ±10% voltage regulation for reliable power protection.
- Voltage: 220/230/240 VAC
- Voltage Range: 180-270 VAC
- Frequency: 50 Hz
AED 500incl. VAT
In stock
Voltronic Scudo features
About the Voltronic Scudo
Introducing the Scudo UPS by Voltronic Power, a reliable solution for uninterrupted power supply. With a voltage range of 180-270 VAC and precise voltage regulation, it ensures your devices remain protected and operational. The Scudo UPS is ideal for safeguarding sensitive electronics, home office equipment, and small business systems from power fluctuations and outages.
Specifications last updated 27 March 2026
Voltronic Scudo full specifications
Electrical
| Voltage | 220/230/240 VAC / 220/230/240 VAC |
|---|---|
| Acceptable Voltage Range | 180 - 270 VAC / 180 - 270 VAC |
| Frequency | 50 Hz / 50 Hz |
| Output Voltage | 220/230/240 VAC / 220/230/240 VAC |
| Voltage Regulation (Batt. Mode) | ± 10% / ± 10% |
| Frequency Range (Batt. Mode) | 50Hz ± 1 Hz / 50Hz ± 1 Hz |
| Transfer Time (Typical) | 2-6 ms / 2-6 ms |
| Waveform (Batt. Mode) | Simulated Sinewave |
| Battery Type & Number | 12 V / 4.5 Ah x 1 / 12 V / 5 Ah x 1 |
| Typical Recharge Time | 8 hours recover to 90% capacity |
| Smart USB (Option) | N/A / Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC |
Mechanical
| Dimension, D x W x H (mm) | 166 x 161 x 89.2 / 166 x 161 x 89.2 |
|---|---|
| Net Weight (kgs) | 2.25 / 2.56 |
| Weight | 2.25 / 2.56 |
Environmental
| Humidity | 0-90 % |
|---|---|
| Operating Temperature | 0- 40°C (non-condensing) |
