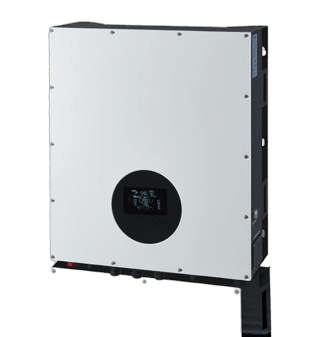

Voltronic InfiniSolar WP 12KW On-Grid Solar Inverter
The InfiniSolar WP 3PH InfiniSolar WP 12KW is an on-grid solar inverter rated InfiniSolar WP 12KW.
- Efficiency: >96%
AED 1incl. VAT
In stock
About the Voltronic InfiniSolar WP 12KW On-Grid Solar Inverter
The InfiniSolar WP 3PH InfiniSolar WP 12KW is an on-grid solar inverter rated InfiniSolar WP 12KW. Every figure on this page is read from the manufacturer's manual for the InfiniSolar WP 3PH series.
Specifications last updated 18 August 2026
Voltronic InfiniSolar WP 12KW On-Grid Solar Inverter full specifications
Electrical
| Efficiency | >96% |
|---|---|
| Communication Port | RS-232, RS-485, USB, CAN and Wi-Fi |
| Efficiency (DC to AC) | 91% |
| Nominal DC Voltage / Maximum DC Voltage | 720 VDC/1000 VDC |
| Start-up Voltage / Initial Feeding Voltage | 320 VDC / 350 VDC |
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| MPP Voltage Range | 350 ~ 950 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 / A: 27A, B: 27A |
| Nominal Output Current | 17.4 A per phase |
| Maximum AC Input Current | 40 A |
| Maximum DC Power | 16000 W |
| Maximum Charging Current | 250 A |
| European Efficiency@ Vnominal | >95% |
| Intelligent Slot | Optional for SNMP and Modbus cards |
| AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
Environmental
| Operating Temperature | -25 to 60°C, > 45°C power derating |
|---|---|
| Altitude | 0~1000 m** |
| Humidity | 0 ~ 100% RH (Non-condensing) |
