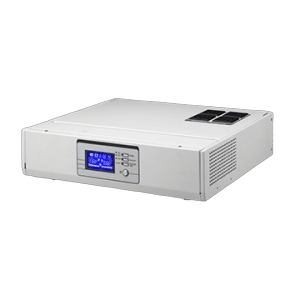

Voltronic Power ALFA 5KVA Solar Inverter

Voltronic ALFA 5KVA Solar Inverter

The ALFA 5KVA is a solar inverter rated 5KVA. Every figure on this page is read from the manufacturer's manual for the ALFA series.

  • Rated Output Power: 5KVA/5KW
  • Surge Capacity: for 5 seconds
  • Nominal DC Input Voltage: 48Vdc
AED 1incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

About the Voltronic ALFA 5KVA Solar Inverter

The ALFA 5KVA is a solar inverter rated 5KVA. Every figure on this page is read from the manufacturer's manual for the ALFA series.

Specifications last updated 17 August 2026

Voltronic ALFA 5KVA Solar Inverter full specifications

Electrical

Rated Output Power5KVA/5KW
Surge Capacityfor 5 seconds
Nominal DC Input Voltage48Vdc
High DC Recovery Voltage58Vdc
High DC Cut-off Voltage60Vdc
No Load Power Consumption<50W
Saving Mode Power Consumption<15W
Floating Charging Voltage27Vdc
Peak Efficiency90%
Nominal Input Voltage230Vac
Low Loss Return Voltage180Vac± 7V (UPS); 100Vac± 7V (Appliances)
High Loss Voltage280Vac± 7V
High Loss Return Voltage270Vac± 7V
Max AC Input Voltage300Vac
Low Loss Frequency40± 1Hz
Low Loss Return Frequency42± 1Hz
High Loss Frequency65± 1Hz
High Loss Return Frequency63± 1Hz
Output Short Circuit ProtectionLine mode: Circuit Breaker Battery mode: Electronic Circuits
Efficiency (Line Mode)>95% ( Rated R load, battery full charged )
Transfer Time10ms typical (For UPS) 20ms typical (For Appliances)
