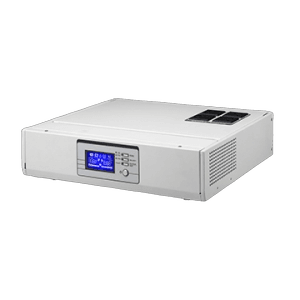

Voltronic Power ALFA 3KVA Solar Inverter

Voltronic ALFA 3KVA Solar Inverter

The ALFA 3KVA is a solar inverter rated 3KVA. Every figure on this page is read from the manufacturer's manual for the ALFA series.

  • Rated Output Power: 3KVA/2.4KW
  • Surge Capacity: 2* rated power
  • Nominal DC Input Voltage: 24Vdc
AED 1incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

About the Voltronic ALFA 3KVA Solar Inverter

The ALFA 3KVA is a solar inverter rated 3KVA. Every figure on this page is read from the manufacturer's manual for the ALFA series.

Specifications last updated 17 August 2026

Voltronic ALFA 3KVA Solar Inverter full specifications

Electrical

Rated Output Power3KVA/2.4KW
Surge Capacity2* rated power
Nominal DC Input Voltage24Vdc
High DC Recovery Voltage29Vdc
High DC Cut-off Voltage31Vdc
No Load Power Consumption<25W
Saving Mode Power Consumption<10W
Floating Charging Voltage27Vdc
Peak Efficiency90%
Nominal Input Voltage230Vac
Low Loss Return Voltage180Vac± 7V (UPS); 100Vac± 7V (Appliances)
High Loss Voltage280Vac± 7V
High Loss Return Voltage270Vac± 7V
Max AC Input Voltage300Vac
Nominal Input Frequency50Hz / 60Hz (Auto detection)
Low Loss Frequency40± 1Hz
Low Loss Return Frequency42± 1Hz
High Loss Frequency65± 1Hz
High Loss Return Frequency63± 1Hz
Output Short Circuit ProtectionLine mode: Circuit Breaker Battery mode: Electronic Circuits
Efficiency (Line Mode)>95% ( Rated R load, battery full charged )
