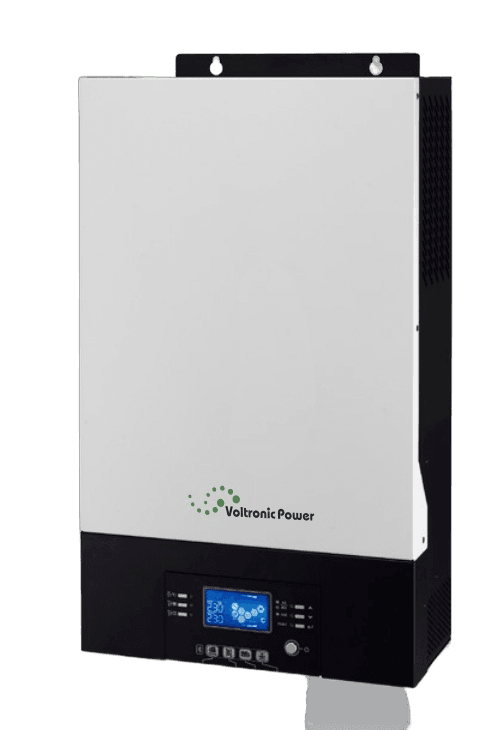

Voltronic Power Axpert KING 5KW Solar Inverter

Voltronic Axpert KING 5KW Solar Inverter

The Axpert KING 5KW is a solar inverter rated 5KW. Every figure on this page is read from the manufacturer's manual for the Axpert KING series.

  • Rated Output Power: 5KVA/5KW
  • Surge Capacity: for 5 seconds
  • Nominal DC Input Voltage: 48Vdc
AED 1incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

About the Voltronic Axpert KING 5KW Solar Inverter

The Axpert KING 5KW is a solar inverter rated 5KW. Every figure on this page is read from the manufacturer's manual for the Axpert KING series.

Specifications last updated 17 August 2026

Voltronic Axpert KING 5KW Solar Inverter full specifications

Electrical

Rated Output Power5KVA/5KW
Surge Capacityfor 5 seconds
Nominal DC Input Voltage48Vdc
Battery Operating Voltage Range40Vdc -66Vdc
High DC Recovery Voltage64Vdc
High DC Cut-off Voltage66Vdc
No Load Power Consumption<75W
Low Loss Voltage110Vac± 7V
Low Loss Return Voltage120Vac± 7V
Overcharge34Vdc
PV Array MPPT Voltage Range30~115Vdc
Peak Efficiency90%
Nominal Input Voltage230Vac
High Loss Voltage280Vac± 7V
High Loss Return Voltage270Vac± 7V
Max AC Input Voltage300Vac
Low Loss Frequency46(56)± 1Hz
Low Loss Return Frequency46.5(57)± 1Hz
High Loss Return Frequency53(63)± 1Hz
Power Factor>0.98
Output Short Circuit ProtectionLine mode: Circuit Breaker Battery mode: Electronic Circuits
Efficiency (Line Mode)93% (Peak Efficiency)
Transfer TimeLine modeBattery mode 0ms InverterBypass 4ms
CommunicationRS232 and Bluetooth
Max. PV Array Open Circuit Voltage145Vdc
PV Voltage Accuracy+/-2V
