Voltronic Atom
Discover Voltronic Power's Atom Inverter with 230 VAC, 100-290 VAC range, and 50/60Hz auto sensing for efficient power management.
- Voltage: 230 VAC
- Acceptable Voltage Range: 100 - 290 VAC
- Frequency Range: 50Hz/60Hz (Auto Sensing)
AED 800incl. VAT
In stock
Voltronic Atom features
About the Voltronic Atom
Introducing the Atom Inverter by Voltronic Power, a robust solution for your power conversion needs. With a voltage of 230 VAC and an acceptable range of 100 to 290 VAC, this inverter ensures reliable performance. Its auto-sensing frequency range of 50Hz/60Hz makes it adaptable to various power environments. The Atom Inverter is ideal for residential and commercial applications, providing seamless power conversion for home appliances, office equipment, and more.
Specifications last updated 27 March 2026
Voltronic Atom full specifications
Electrical
| Voltage | 230 VAC |
|---|---|
| Acceptable Voltage Range | 100 - 290 VAC |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 230V ±10% |
| Transfer Time | 20 ms (typical) |
| Waveform (Batt. Mode) | Simulated Sine wave |
| Battery Voltage | 12 VDC |
| Floating Charge Voltage | 13.7 VDC ± 2% |
| Low Battery Alarm Voltage @ 50% Load | 10.6 VDC ± 2% |
| Shutdown Voltage | 9.9 VDC ± 2% |
| Overcharge Protection | 14.5 VDC ± 2% |
| Maximum Charge Current | 10 A |
Mechanical
| Dimension, D X W X H (mm) | 359 x 97 x 147 |
|---|---|
| Net Weight (kgs) | 5.1 |
Environmental
| Humidity | 0 to 90% Relative Humidity (Non-condensing) |
|---|---|
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -15°C to 50°C |
Related Products
SolaPalm 70
- Maximum PV Array Open Circuit Voltage:30 VDC
- Maximum Solar Charging Current:2 A
AED 500
Buy Now — SolaPalm 70
DC Converter 3KW
- Max. PV Array Power:4500 W
- Maximum PV Array Open Circuit Voltage:580 VDC
AED 1,200
Buy Now — DC Converter 3KW

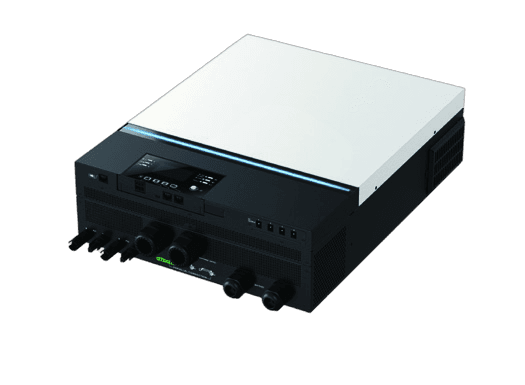

Voltronic Axpert MAX 3600-24-230 Off-Grid Solar Inverter
