Voltronic DC Converter 3KW
Discover Voltronic Power's DC Converter 3KW with 4500W PV Array Power and 580VDC Open Circuit Voltage for efficient energy conversion.
- Max. PV Array Power: 4500 W
- Maximum PV Array Open Circuit Voltage: 580 VDC
- MPPT Voltage Range: 180 VDC ~ 500 VDC
- Number of MPP Tracker: 1
AED 1,200incl. VAT
In stock
Voltronic DC Converter 3KW features
About the Voltronic DC Converter 3KW
Introducing the Voltronic Power DC Converter 3KW, a robust solution for efficient energy conversion. With a maximum PV array power of 4500W and an open circuit voltage of 580VDC, this converter is designed to optimize your solar power systems. Ideal for solar power systems, the DC Converter 3KW is perfect for residential and commercial applications requiring reliable and efficient energy conversion.
Specifications last updated 27 March 2026
Voltronic DC Converter 3KW full specifications
Electrical
| Protective Class | I |
|---|---|
| Isc PV (absolute maximum) | Nominal discharging power/Nominal charging power 3000W/4500W Nominal battery range 250~450V |
| Ingress Protection Rating | IP21 |
| Battery open voltage | 200V |
| Battery wakeup voltage | 230V |
| Intelligent Slot | AS-400 cards available Protective Class I Ingress |
| Battery | Nominal discharging power/Nominal charging power 3000W/4500W Nominal battery range 250~450V |
| Battery overcharge protection | 460V |
| Communication Port | RS232 / USB |
| Nominal output power | 3000W |
| Output voltage range | 250V ~ 450V |
| Max. PV Array Power | 4500 W |
| Maximum PV Array Open Circuit Voltage | 580 VDC |
| MPPT Voltage Range | 180 VDC ~ 500 VDC |
| Number of MPP Tracker | 1 |
| Maximum Bypass PV Array Current | 20 A |
| Maximum Conversion Efficiency | 98% |
| Nominal Discharge and Charging Power | 3000 W |
| Nominal DC Voltage Range | 250 VDC ~ 450 VDC |
| Maximum Charging Efficiency | 98% |
| Communication | Modbus |
Mechanical
| Dimension, D X W X H (mm) | 96 x 363 x 284 |
|---|---|
| Net Weight (kgs) | 9 |
Environmental
| Altitude | Max. 2000m* |
|---|---|
| Humidity | 0 ~ 90% RH (Non-condensing) |
| Operating Temperature | 0 to 40°C |
Related Products
SolaPalm 70
- Maximum PV Array Open Circuit Voltage:30 VDC
- Maximum Solar Charging Current:2 A
AED 500
Buy Now — SolaPalm 70

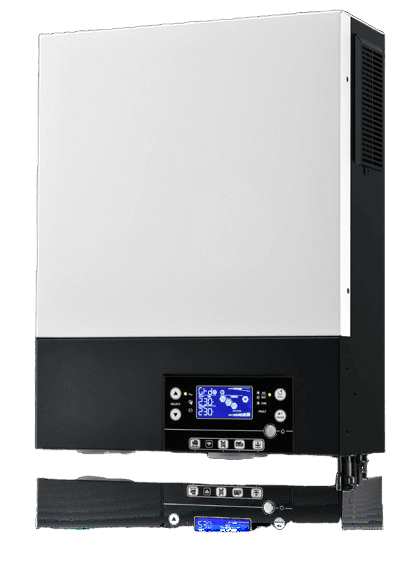

Voltronic Axpert VM III TRI 4.5K Off-Grid Solar Inverter
