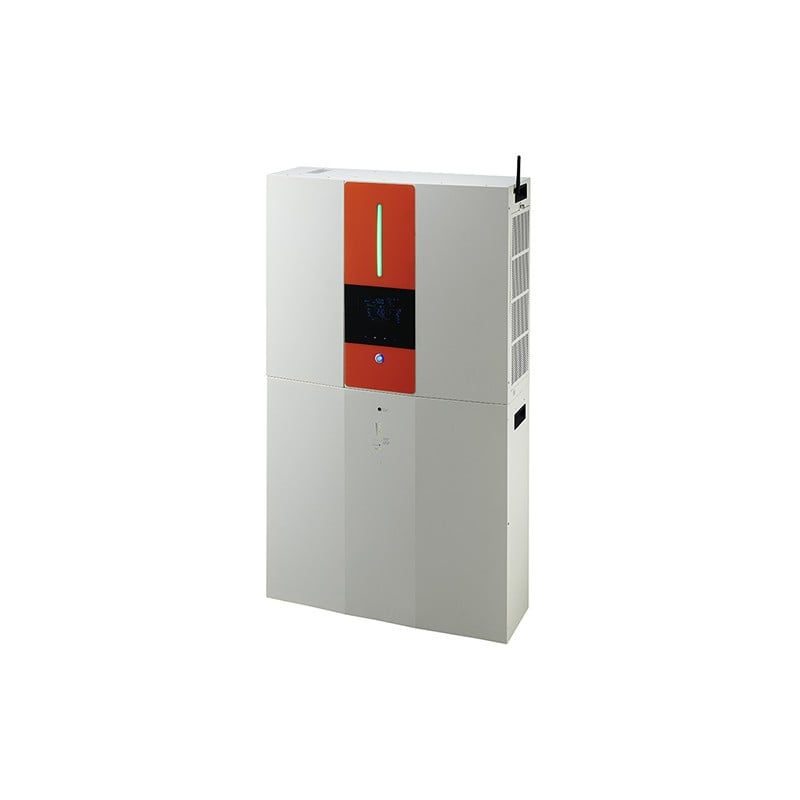

Voltronic Power ESS810

Voltronic ESS810

Discover Voltronic Power's ESS810 with 8000VA/8000W rated power, 230VAC regulation, and 16000VA surge power for reliable energy storage.

  • Rated Inverter Power: 8000VA/8000W
  • AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
  • Surge Power: 16000VA
  • Efficiency (Peak): 93%
AED 11,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic ESS810 features

Integrated 8kw off-grid inverter and

Integrated 8kw off-grid inverter and lithium-ion battery module

Built-in Wi-Fi for mobile monitoring

Supports USB On-the-Go function

Reserved communication port for BMS

Reserved communication port for BMS (RS485, CAN-BUS or RS232)

Configurable AC/PV output usage timer

Configurable AC/PV output usage timer and prioritization

Selectable high power charging current

Selectable input voltage range for

Selectable input voltage range for home appliances and personal computers

Compatible to Utility Mains or

Compatible to Utility Mains or generator input

Scalable Li-Ion battery expansion

IP20

About the Voltronic ESS810

The Voltronic Power ESS810 is a robust energy storage system designed to deliver reliable power with an impressive 8000VA/8000W rated inverter power. Featuring precise AC voltage regulation and a high surge capacity, this system ensures consistent performance for both home and professional applications. Ideal for powering sensitive electronics, home appliances, and office equipment, the ESS810 provides stable energy storage and distribution, ensuring uninterrupted operation during power fluctuations.

Specifications last updated 27 March 2026

Voltronic ESS810 full specifications

Electrical

Rated Inverter Power8000VA/8000W
AC Voltage Regulation (Batt. Mode)230VAC ± 5%
Surge Power16000VA
Efficiency (Peak)93%
Transfer Time15 ms (For Personal Computers), 20 ms (For Home Appliances)
WaveformPure Sine Wave
No Load Power Consumption<75W
Voltage230 VAC
Selectable Voltage Range170-280 VAC (For Computers); 90-280 VAC (For Home Appliances)
Frequency Range50 Hz/60 Hz (Auto sensing)
Solar Charger typeMPPT
Maximum PV Array Power8000W (4000W × 2)
MPPT Range @ Operating Voltage90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage500 VDC
Maximum Solar Charge Current150 A
Maximum AC Charge Current120 A
Maximum Charge Current150 A
Nominal Voltage51.2VDC
Full Charge Voltage (FC)56V
Full Discharge Voltage (FD)42V
Typical Capacity100Ah
Max Continuous Discharging Current150A
Max Discharging Current192A at 1min
ProtectionBMS, breaker
Charge Voltage56V
Charge Current20A (0.2C)
Standard Charge Method0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C
Inner Resistance<20m ohm
Dimension, D x W x H (mm)214 x 621 x 550
Net Weight (kgs)55
Compliance SafetyIEC/EN 62109-1/-2, IEC/EN IEC 61000-6-4, IEC/EN IEC 61000-6-2, IEC/EN IEC 61000-3-11, IEC/EN 61000-3-12, IEC 61683
Battery Compliance SafetyIEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3

Certifications

  • CE
  • UKCA
  • UN38.3
