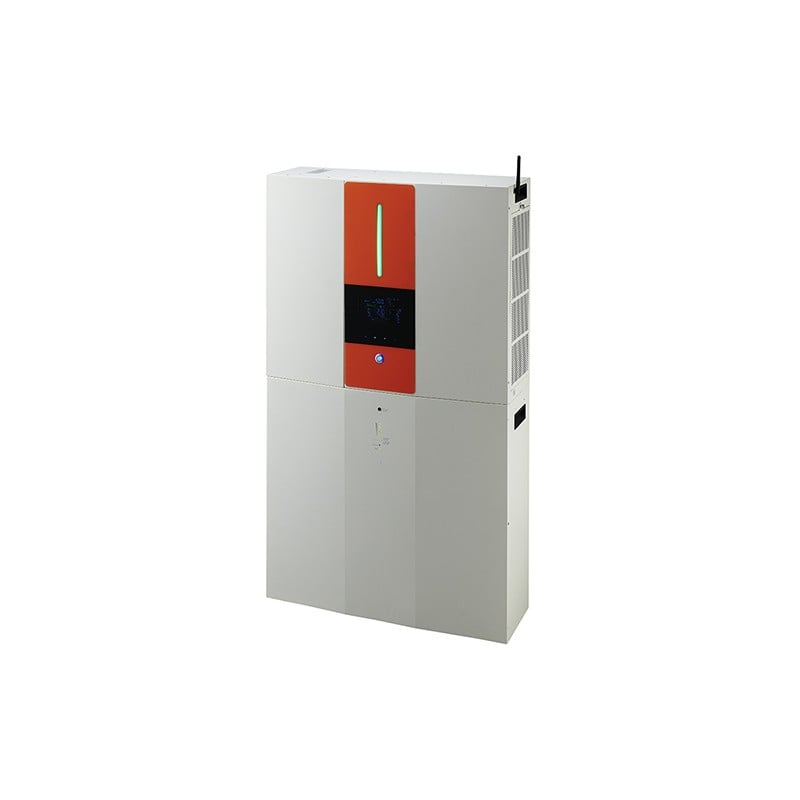

Voltronic Power ESS510

Voltronic ESS510

Discover the Voltronic Power ESS510 Energy Storage System with 6500W PV input and versatile voltage options for efficient energy management.

  • Maximum PV Input Power: 6500W
  • Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC
  • Start-up Voltage / Initial Feeding Voltage: 116 VDC / 150 VDC
  • MPP Voltage Range: 120 VDC – 450 VDC
AED 7,500incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic ESS510 features

Integrated 5.5kw hybrid solar inverter

Integrated 5.5kw hybrid solar inverter and lithium-ion battery module

Self-consumption and Feed-back to the

Self-consumption and Feed-back to the Grid

Programmable supply priority for PV,

Programmable supply priority for PV, battery or Grid

User-adjustable battery charging current

Programmable multiple operation modes: Grid-tie,

Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup

Built-in timer for various mode

Built-in timer for various mode of on/off operation

Multiple communication for USB, RS232,

Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi

Monitoring software for real-time status

Monitoring software for real-time status display and control

Enhance AC/Solar charger to 100A

Scalable Li-ion battery expansion

Li-ion battery life cycle: 8000

Li-ion battery life cycle: 8000 cycles at 25 °C

High surge discharging current up

High surge discharging current up to 3C

IP 20

About the Voltronic ESS510

The Voltronic Power ESS510 is a cutting-edge energy storage system designed to optimize your energy usage. With a maximum PV input power of 6500W and a wide range of voltage options, it ensures reliable and efficient energy management for various applications. Ideal for residential and commercial energy storage, the ESS510 supports solar power integration, providing a stable and efficient energy supply.

Specifications last updated 27 March 2026

Voltronic ESS510 full specifications

Electrical

Maximum PV Input Power6500W
Nominal DC Voltage / Maximum DC Voltage360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage116 VDC / 150 VDC
MPP Voltage Range120 VDC – 450 VDC
Nominal Output Voltage208/220/230/240 VAC
Output Voltage Range184 - 264.5 VAC*
Max. Output Current23.9A*
Maximum Conversion Efficiency (DC/AC)96%
European Efficiency @ Vnominal95%
AC Start-up Voltage / Auto Restart Voltage120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range170 -280 VAC
Maximum AC Input Current40 A
Nominal DC Voltage48 VDC
Maximum Charging Current100 A
Capacity5000Wh
Nominal Voltage51.2VDC
Full Charge Voltage (FC)56V
Full Discharge Voltage (FD)42V
Typical Capacity100Ah
Max Continuous Discharging Current150A
Max Discharging Current192A at 1min
ProtectionBMS, breaker
Charge Current20A (0.2C)
Maximum Charge Current50A (0.5C)
Standard Charge Method0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C
Inner Resistance<20m ohm
Dimension, D x W x H (mm)214 x 621 x 550
Net Weight (kgs)55
Compliance SafetyIEC/EN 62109-1/-2, IEC 62040-1, EN 61000-6-4, EN IEC 61000-6-2, EN IEC 61000-3-11, EN 61000-3-12, IEC 61727, IEC 62116, G99, NRS 097-2-1, EN 50549-1
Battery Module Compliance SafetyIEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3
Number of MPP Trackers / Maximum Input Current2 / 2 x 13 A

Certifications

  • CE
  • UKCA
  • UN38.3

Troubleshooting & error codes

Looking up an error code on this Voltronic Power ESS510? Browse the full list of codes for this device, with the cause and recommended fix for each.

View error codes for this device →
