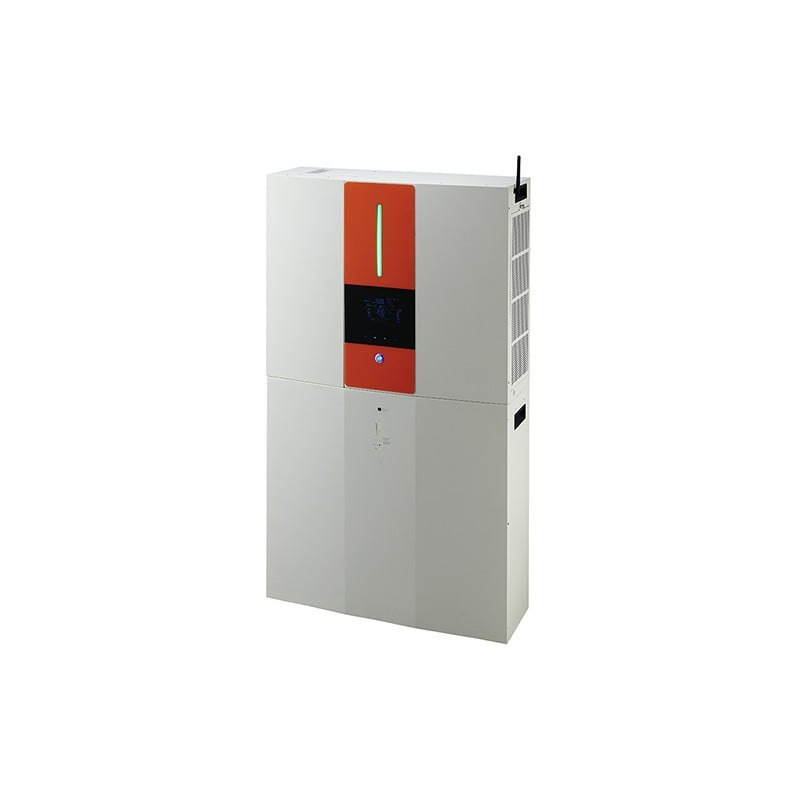

Voltronic Power ESS610

Voltronic ESS610

Discover Voltronic Power's ESS610 with MPPT range 90-230 VDC, max solar charge 120A, and 250 VDC open circuit voltage.

  • MPPT Range @ Operating Voltage: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Solar Charge Current: 120A
AED 9,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic ESS610 features

Integrated 6.5kw off-grid inverter and

Integrated 6.5kw off-grid inverter and lithium-ion battery module

Built-in 2 MPP trackers

Enhanced AC/solar charge to 120A

Programmable supply priority for PV,

Programmable supply priority for PV, battery or Grid

User-adjustable battery charging current

Battery independent design

Multiple communication for USB, RS232,

Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi

Monitoring APP (Android and iOS)

Monitoring APP (Android and iOS) for real-time status display and parameter control

Compatible to utility and generator

Lithium Iron Phosphate (LFP) cell

Scalable Li-ion battery expansion

About the Voltronic ESS610

The Voltronic Power ESS610 is a cutting-edge energy storage system designed to optimize solar energy usage. With an MPPT range of 90 to 230 VDC and a maximum solar charge current of 120A, it ensures efficient energy conversion and storage. Ideal for residential and commercial solar installations, the ESS610 supports reliable power supply and energy independence.

Specifications last updated 27 March 2026

Voltronic ESS610 full specifications

Electrical

MPPT Range @ Operating Voltage90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage250 VDC
Maximum Solar Charge Current120A
Acceptable Input Voltage Range90-140 VAC (For Computers) / 80-140 VAC (For Home Appliances)
Maximum AC Input Current60A
Nominal Output Voltage120 VAC
Maximum Conversion Efficiency (DC/AC)93%
Nominal DC Voltage48 VDC
Maximum Charging Current120 A
Compliance SafetyUL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
Capacity5120Wh
Nominal Voltage51.2VDC
Full Charge Voltage (FC)56V
Full Discharge Voltage (FD)42V
Typical Capacity100Ah
Max Continuous Discharging Current120A
Max Discharging Current192A at 1min
ProtectionBMS, Breaker
Charge Voltage52.5V
Charge Current20A (0.2C)
Maximum Charge Current50A (0.5C)
Standard Charge Method0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to <0.05C
Inner Resistance<20m ohm
Number of MPP Trackers / Maximum Input Current2 / 2 x 18 A

Mechanical

Dimension, D x W x H (mm)214 x 621 x 500
Net Weight (kgs)25
Battery Module Dimension, D X W X H (mm)210 x 621 x 551
System Dimension, D X W X H (mm)500 x 660 x 1250
Weight25 kg

Certifications

  • UL 1741
  • CSA C22.2 No.107.1-16
  • FCC PART 15B
  • IEC 62619
  • EN 61000-6-3
  • EN 61000-6-1
  • UKCA
  • UN38.3
