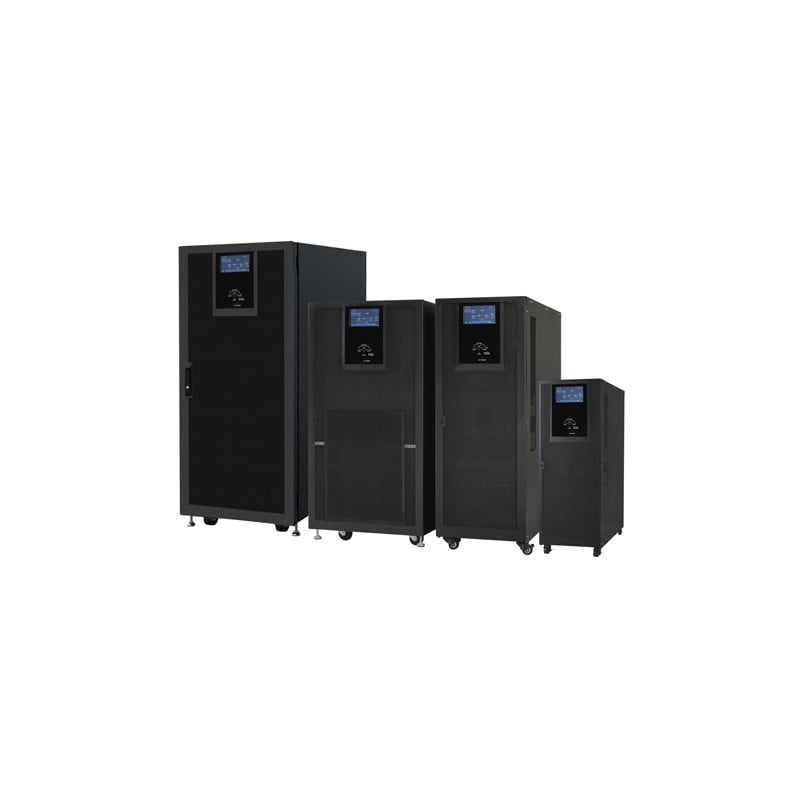

Voltronic Power +Power E 15U-60

Voltronic +Power E 15U-60

+Power E 15U-60 by Voltronic Power: Online UPS with 3 x 380VAC/400VAC/415VAC, 50/60Hz auto sensing, and precise voltage regulation.

  • Rated Output Power (VA): 60kVA
  • Rated Output Power (W): 60kW
  • Nominal Voltage: 3 x 380VAC/400VAC/415VAC (3Ph+N)
  • Voltage Range: 305 - 478 VAC at 70% - 100% load; 208 - 478 VAC for <70% load
  • Frequency: 50/60Hz (Auto sensing)
AED 130,000incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic +Power E 15U-60 features

High efficiency online double conversion

High efficiency online double conversion technology

Output power factor 1

Modular design lowers MTTR

Adjustable battery numbers

Adjustable charging current

Built-in maintenance bypass switch for

Built-in maintenance bypass switch for easy maintenance without interruption

Graphic 5.7” LCD design for

Graphic 5.7” LCD design for easy configuration

Support 1+1 cabinets parallel

About the Voltronic +Power E 15U-60

Discover the +Power E 15U-60, an advanced Online UPS solution by Voltronic Power. Designed for optimal performance, it supports a nominal voltage of 3 x 380VAC/400VAC/415VAC and features auto-sensing frequency capabilities. Ensure your critical systems are protected with its precise voltage regulation. Ideal for data centers, telecommunications, and industrial applications where reliable power backup is essential.

Specifications last updated 23 July 2026

Voltronic +Power E 15U-60 full specifications

Electrical

Rated Output Power (VA)60kVA
Rated Output Power (W)60kW
Power Module20KVA/20KW (PM-20HV)
Max Power Modules3
Nominal Voltage3 x 380VAC/400VAC/415VAC (3Ph+N)
Voltage Range305 - 478 VAC at 70% - 100% load; 208 - 478 VAC for <70% load
Nominal Frequency50/60Hz (Auto sensing)
Frequency Range40Hz - 70Hz
Power Factor> 0.99 at 100% load, > 0.98 at 50% load
Harmonic Distortion (THDi)< 3% @ 100% load
Voltage Regulation (Steady state)≤ ± 1% Typical (balanced load)
Frequency Range (Synchronized)46Hz - 54Hz or 56Hz - 64Hz
Overload Capability1 hour for 110%, 10 mins for 125%, 1 min for 150% and 200ms for >150%
Harmonic Distortion≤ 2% THD (Linear load); ≤ 4% THD (Non-linear load)
EfficiencyUp to 94.5%
Maximum Voltage+/- 240V (12V x 40 Pcs)
Minimum Voltage+/- 192V (12V x 32 Pcs)
Float Charging Voltage2.25V/Cell
Boost Charging Voltage2.35V/Cell
Maximum Charging Current6A (User-adjustable)
Smart RS-232 / USBSupports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC
Optional SNMPPower management from SNMP manager and web browser
SafetyIEC/EN 60950-1; IEC/EN 62040-1
EMCIEC/EN 62040-2 Category C3

Mechanical

Cabinet Dimension (D x W x H) mm1000 x 515 x 763
Net Weight (kg)182
Weight182

Environmental

Operating Temperature0 - 40°C
Relative Humidity0 - 95% non-condensing
Altitude<1000m for Nominal power
IP ProtectionIP 20
Temperature CompensationYes

Certifications

  • IEC/EN 60950-1
  • IEC/EN 62040-1
  • IEC/EN 62040-2 Category C3
