Voltronic Power InfiniSolarVII 1.5KW Solar Inverter

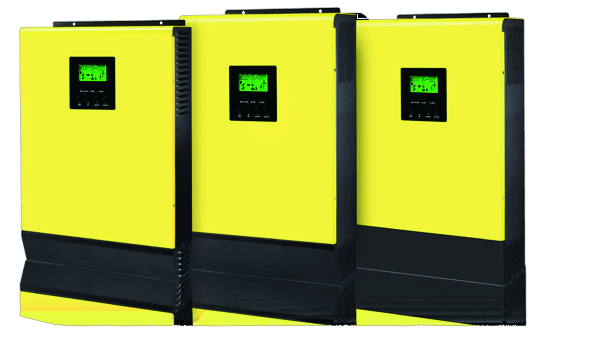

Voltronic InfiniSolar VII 1.5KW Solar Inverter

The InfiniSolar VII 1.5KW is a solar inverter rated 1.5KW. Every figure on this page is read from the manufacturer's manual for the InfiniSolar VII series.

  • Max. PV Power: 2000W
  • Max. PV Array Open Circuit Voltage: 400VDC
  • Nominal Output Voltage: 220/230/240 VAC
AED 1incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

About the Voltronic InfiniSolar VII 1.5KW Solar Inverter

The InfiniSolar VII 1.5KW is a solar inverter rated 1.5KW. Every figure on this page is read from the manufacturer's manual for the InfiniSolar VII series.

Specifications last updated 17 August 2026

Voltronic InfiniSolar VII 1.5KW Solar Inverter full specifications

Electrical

Max. PV Power2000W
Max. PV Array Open Circuit Voltage400VDC
Nominal Output Voltage220/230/240 VAC
Nominal Output Current6.5A
Power Factor Range>0.99
Maximum Conversion Efficiency (DC/AC)95%
Rating of AC Transfer Relay30A
Efficiency (DC to AC)93%
Maximum Charging Current (from Grid)30A
Maximum Charging Current (from PV)40A
Maximum Charge Current40A
External Safety Box (Optional)Yes
CommunicationDry-Contact or USB
MPPT Range @ Operating Voltage120 VDC~380 VDC
Feed-in Grid Voltage Range~ 195.5~253 VAC @India regulation 184 264.5 VAC@Germany regulation 184~264.5VAC @South America regulation
Feed-in Grid Frequency Range49~51Hz @India regulation 47.5 51.5Hz @Germany regulation 57~62Hz @South America regulation
Acceptable Input Voltage Range90 - 280 VAC or 170 - 280 VAC
Frequency Range50 Hz/60 Hz (Auto sensing)
Nominal DC Voltage48 VDC
Number of MPP Tracker1
Parallel FunctionNo
Communication PortUSB or RS-232/Dry Contact

Mechanical

Dimension, D X W X H (mm)100 x 300 x 440

Environmental

Humidity0 ~ 90% RH (No condensing)
Operating Temperature0 to 50°C
