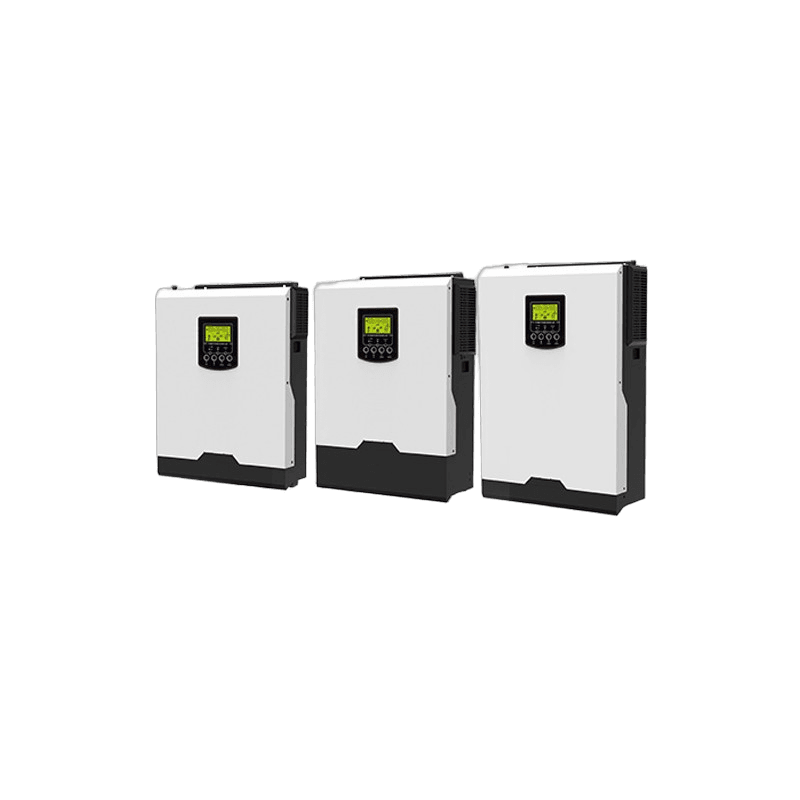

Voltronic Power Axpert VM II Elite 6KP Off-Grid Solar Inverter

Voltronic Axpert VM II Elite 6KP Off-Grid Solar Inverter

The Axpert VM II Elite 6KP is an off-grid solar inverter rated Axpert VM II Elite 6KP.

Rated Power: 6000VA/6000W
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
AC Voltage Regulation (Batt. Mode): 230VAC ±5%

AED 1incl. VAT

In stock

Full Specifications Download datasheet (PDF)

About the Voltronic Axpert VM II Elite 6KP Off-Grid Solar Inverter

The Axpert VM II Elite 6KP is an off-grid solar inverter rated Axpert VM II Elite 6KP. Every figure on this page is read from the manufacturer's manual for the Axpert VM II Elite series.

Specifications last updated 18 August 2026

Voltronic Axpert VM II Elite 6KP Off-Grid Solar Inverter full specifications

Electrical

Rated Power	6000VA/6000W
Selectable Voltage Range	170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
AC Voltage Regulation (Batt. Mode)	230VAC ±5%
Surge Power	12000VA
Efficiency (Peak)	93%
Maximum PV Input Current	27A
MPP Range @ Operating Voltage	60-450 VDC
Maximum Solar Charge Current	120A
Maximum AC Charge Current	100A
Maximum Charge Current	120A
Maximum PV Array Power	10000W
Communication Interface	RS232/RS485/CAN/WiFi
Transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform	Pure sine wave
Floating Charge Voltage	54 VDC
Solar Charger type	MPPT
Maximum PV Array Open Circuit Voltage	500 VDC
Frequency Range	50 Hz/60 Hz (Auto sensing)
Battery Voltage	48 VDC
Overcharge Protection	63 VDC

Mechanical

Net Weight (kgs)	12.5

Environmental

Humidity	5% to 95%
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Frequently Asked Questions

The Axpert VM II Elite 6KP is rated 6000VA/6000W continuous, with 12000VA available on surge for the second a motor or a compressor starts. Size the load you actually intend to run against the continuous figure, never against the surge one.

The Axpert VM II Elite 6KP takes up to 10000W of PV array. The string has to stay below 500 VDC open-circuit — that ceiling is reached on a cold bright morning, not at noon. The tracker works over 60-450 VDC, so wire the modules to land inside that window.

The Axpert VM II Elite 6KP works with a 48 VDC bank. It charges at up to 120A, and that current — not the bank's capacity — is what the cabling and the fuse between bank and unit have to be sized for.
