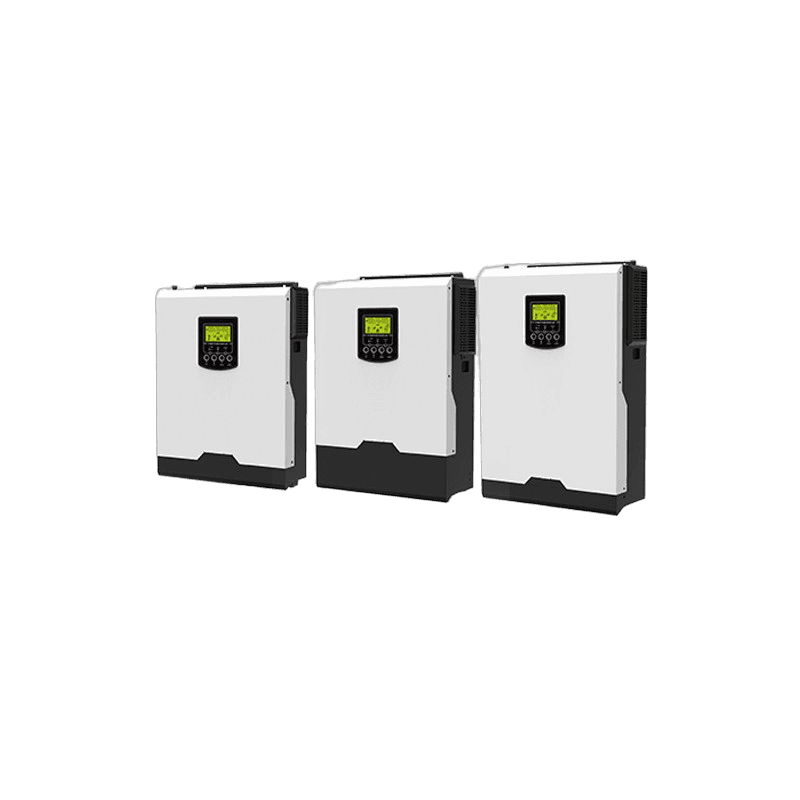

Voltronic Power Axpert VM II Elite 6KP

Voltronic Axpert VM II Elite 6KP

Discover the Axpert VM II Elite 6KP inverter by Voltronic Power with 230 VAC voltage, 12000VA surge power, and auto-sensing frequency.

  • Voltage: 230 VAC
  • Voltage Range: 90-280 VAC
  • Frequency Range: 50 Hz/60 Hz (Auto sensing)
AED 2,800incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Axpert VM II Elite 6KP features

Increased PV power to 10000W

Dual inputs and dual outputs

Dual inputs and dual outputs for smart energy management

Wide PV input voltage range

Wide PV input voltage range 60VDC–450VDC

Built-in meter calibration for optimized

Built-in meter calibration for optimized system operation

Maximum PV input current increases

Maximum PV input current increases to 27A

Built-in BMS communication port

Battery independent design

Built-in WiFi with APP for

Built-in WiFi with APP for remote monitoring and OTA firmware upgrade

Built-in Pre-charge circuit to reduce

Built-in Pre-charge circuit to reduce inrush current

True battery reverse polarity protection

Low noise and no load

Low noise and no load consumption

External CT sensor to guarantee

External CT sensor to guarantee 100% self-consumption

Parallel operation up to 2

Parallel operation up to 2 units

Metered 2nd output

About the Voltronic Axpert VM II Elite 6KP

Introducing the Axpert VM II Elite 6KP, a high-performance inverter from Voltronic Power designed to meet your power needs with precision. Featuring a 230 VAC voltage and a robust 12000VA surge power, this inverter ensures reliable performance for both personal computers and home appliances. The Axpert VM II Elite is ideal for powering personal computers, home appliances, and other electronic devices, offering flexibility with its selectable voltage range and auto-sensing frequency.

Specifications last updated 23 July 2026

Voltronic Axpert VM II Elite 6KP full specifications

Electrical

Voltage230 VAC
Selectable Voltage Range170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode)230VAC ± 5%
Surge Power12000VA
Efficiency (Peak)93%
Transfer Time10 ms (For Personal Computers); 20 ms (For Home Appliances)
WaveformPure sine wave
Battery Voltage48 VDC
Floating Charge Voltage54 VDC
Overcharge Protection63 VDC
Solar Charger typeMPPT
Maximum PV Array Open Circuit Voltage500 VDC
Maximum PV Array Power10000W
Maximum PV Input Current27A
MPP Range @ Operating Voltage60-450 VDC
Maximum Solar Charge Current120A
Maximum AC Charge Current100A
Maximum Charge Current120A

Mechanical

Dimension, D x W x H (mm)144 x 348 x 446
Net Weight (kgs)12.5
Communication InterfaceRS232/RS485/CAN/WiFi

Environmental

Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
