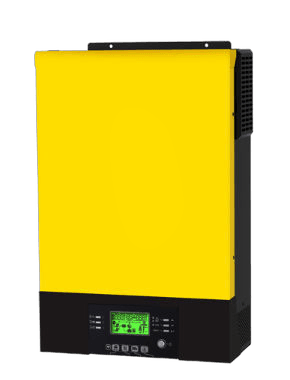

Voltronic Power InfiniSolarVIII InfiniSolar V III 5KW On-Grid Solar Inverter

Voltronic InfiniSolar V III 5KW On-Grid Solar Inverter

The InfiniSolar VIII InfiniSolar V III 5KW is an on-grid solar inverter rated InfiniSolar V III 5KW.

  • Phase: 1-phase in 1-phase out
  • Maximum PV Input Power: 3000W
  • Efficiency: 95%
AED 1incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

About the Voltronic InfiniSolar V III 5KW On-Grid Solar Inverter

The InfiniSolar VIII InfiniSolar V III 5KW is an on-grid solar inverter rated InfiniSolar V III 5KW. Every figure on this page is read from the manufacturer's manual for the InfiniSolar VIII series.

Specifications last updated 18 August 2026

Voltronic InfiniSolar V III 5KW On-Grid Solar Inverter full specifications

Electrical

Phase1-phase in 1-phase out
Maximum PV Input Power3000W
Efficiency95%
Parallel FunctionYes, 9 units
Communication PortUSB, RS-232, Dry Contact and WiFi
Nominal DC Voltage / Maximum DC Voltage360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage120VDC / 150 VDC
MPP Voltage Range120 VDC ~ 430 VDC
Nominal Output Current8.7A
Maximum AC Input Current30 A
Efficiency (DC to AC)93%
Maximum Solar Charging Current60 A
Nominal Output Voltage220/230/240 VAC
Power Factor> 0.99
AC Start-up Voltage / Auto Restart Voltage120 - 140 VAC / 180 VAC

Environmental

Humidity0 ~ 90% RH (No condensing)
Operating Temperature-10°C to 50°C
