Increased PV power to 5600W
Increased PV power to 5600W and 8000W based on model

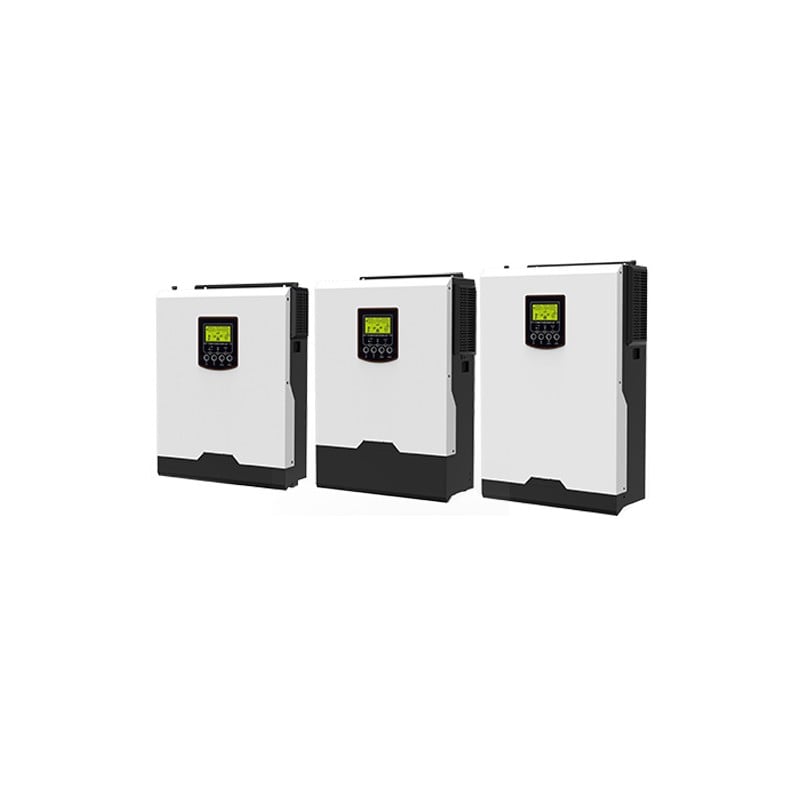

Voltronic VM III-4000 TWIN-PV 5600
Discover the VM III-4000 TWIN-PV 5600 inverter by Voltronic Power with 230 VAC voltage and 8000VA surge power for optimal performance.
- Voltage: 230 VAC
- Selectable Voltage Range: 170-280 VAC
- Frequency Range: 50/60 Hz (Auto)
AED 2,470incl. VAT
In stock
Voltronic VM III-4000 TWIN-PV 5600 features
About the Voltronic VM III-4000 TWIN-PV 5600
The Axpert VM III TWIN-PV inverter by Voltronic Power is engineered for superior energy conversion with its 230 VAC voltage and auto-sensing frequency range of 50/60 Hz. Designed to handle up to 8000VA surge power, it ensures reliable performance in demanding environments. Ideal for residential and commercial solar power systems, the Axpert VM III TWIN-PV inverter efficiently manages energy conversion, ensuring stable power supply even during peak loads.
Specifications last updated 23 July 2026
Voltronic VM III-4000 TWIN-PV 5600 full specifications
Electrical
| Voltage | 230 VAC |
|---|---|
| Selectable Voltage Range | 170-280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% |
| Surge Power | 8000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms |
| Waveform | Pure sine wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger type | MPPT |
| Maximum PV Array Power | 5600W |
| MPP Range @ Operating Voltage | 60 – 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 40A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
Mechanical
| Dimension, D x W x H (mm) | 115 x 300 x 435 |
|---|---|
| Net Weight (kgs) | 9 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
Environmental
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
|---|---|
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
