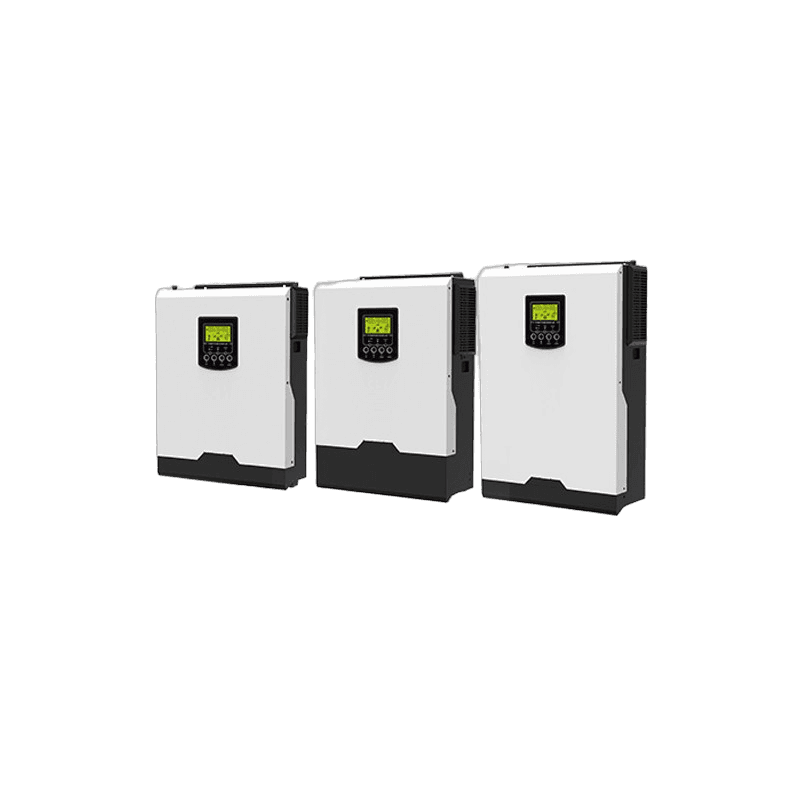

Voltronic Power Axpert VM III TWIN 4K

Voltronic Axpert VM III TWIN 4K

Discover the Axpert VM III TWIN 4K inverter by Voltronic Power with 230VAC ± 10% regulation and 8000VA surge power for optimal performance.

  • Voltage (Batt. Mode): 230VAC ± 10%
  • Surge Power: 8000VA
  • Efficiency (Peak): 90-93%
AED 2,470incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Voltronic Axpert VM III TWIN 4K features

Detachable LCD control module with

Detachable LCD control module with various communications

Maximum PV input current 27A

Dual output for smart load

Dual output for smart load management

Built-in WiFi for mobile monitoring

Built-in WiFi for mobile monitoring (App is available)

Supports USB On-the-Go function

Reserved communication port (RS485, CAN-BUS

Reserved communication port (RS485, CAN-BUS or RS232) for BMS

Battery independent design

Battery equalization extends lifecycle

User-friendly LCD operation

Replaceable fan design for ease

Replaceable fan design for ease of maintenance

About the Voltronic Axpert VM III TWIN 4K

The Axpert VM III TWIN by Voltronic Power is a high-performance inverter designed to deliver reliable power with an AC voltage regulation of 230VAC ± 10%. With a surge power capacity of 8000VA and peak efficiency ranging from 90% to 93%, this inverter is ideal for various demanding applications. The Axpert VM III TWIN is perfect for residential and commercial setups requiring stable power supply, including backup power systems and renewable energy installations.

Specifications last updated 23 July 2026

Voltronic Axpert VM III TWIN 4K full specifications

Electrical

AC Voltage Regulation (Batt. Mode)230VAC ± 10%
Surge Power8000VA
Efficiency (Peak)90% ~ 93%
Transfer Time10 ms (For Personal Computers)
WaveformPure sine wave
Battery Voltage24 VDC
Floating Charge Voltage27 VDC
Overcharge Protection33 VDC
Solar Charger typeMPPT
Maximum PV Array Power5000W
MPP Range @ Operating Voltage60 ~ 450 VDC
Maximum PV Array Open Circuit Voltage500 VDC
Maximum PV Input Current27A
Maximum Solar Charge Current120A
Maximum AC Charge Current100A
Maximum Charge Current120A
Communication InterfaceUSB/RS232/RS485/WiFi/Dry-contact
Selectable Voltage Range170-280 VAC (For Personal Computers)

Mechanical

Dimension, D x W x H (mm)115 x 300 x 435
Net Weight (kgs)9

Environmental

Humidity5% to 95% Relative Humidity (Non-condensing)
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
