Voltronic Axpert VM III TRI 4.5K

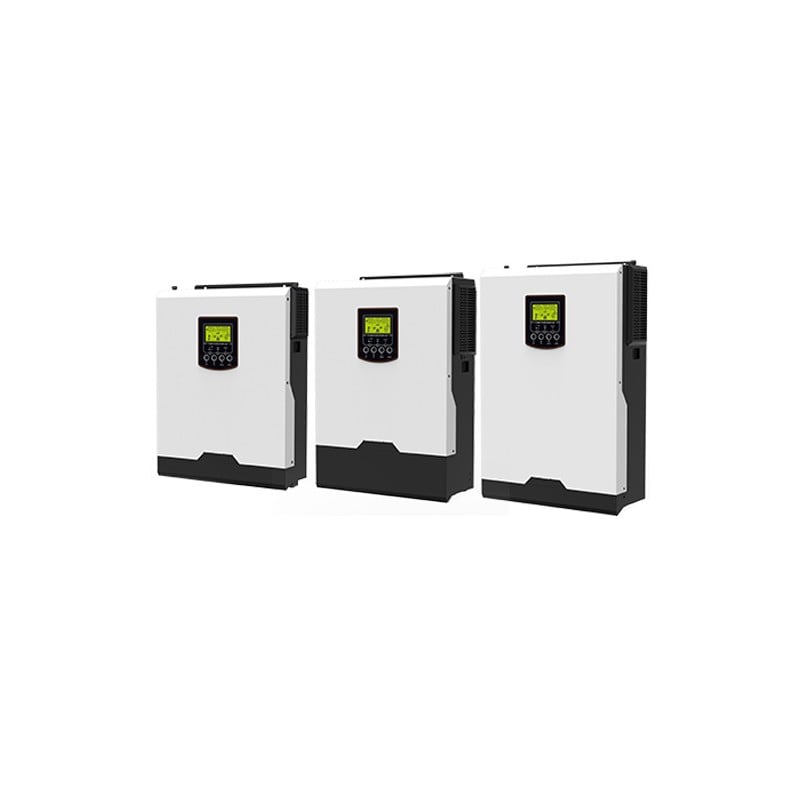

The Voltronic Power Axpert VM III TRI 4.5K is a 4500VA/4500W inverter-charger built on a 24 VDC battery bank. It holds 9000VA surges, takes up to 6500W of PV through a 120A MPPT solar charger tracking from 60 - 450 VDC, and weighs 11.8 kg. Solar input is capped at 40A and 500 VDC open circuit, read to 2V PV voltage accuracy. On the AC side it accepts a sinusoidal 230Vac feed from utility or generator across 90-280 VAC, narrowing to 170-280 VAC in the personal-computer setting, up to a 300Vac ceiling, and transfers in 10 ms in that setting at better than 95% line-mode efficiency. Output is regulated to 230VAC ± 5% at 50Hz or 60Hz auto detection. Charging runs at a 60A default current and up to 120A, floats at 27Vdc, starts from 23.0Vdc and stops at 33 VDC. A circuit breaker covers short circuits, while USB, RS232, RS485, WiFi and dry-contact handle monitoring. The 336 x 435.5 x 131 mm chassis runs from -10°C to 50°C. It is sold with a 2-Year Manufacturer Warranty. We are an authorised Voltronic Power distributor.
