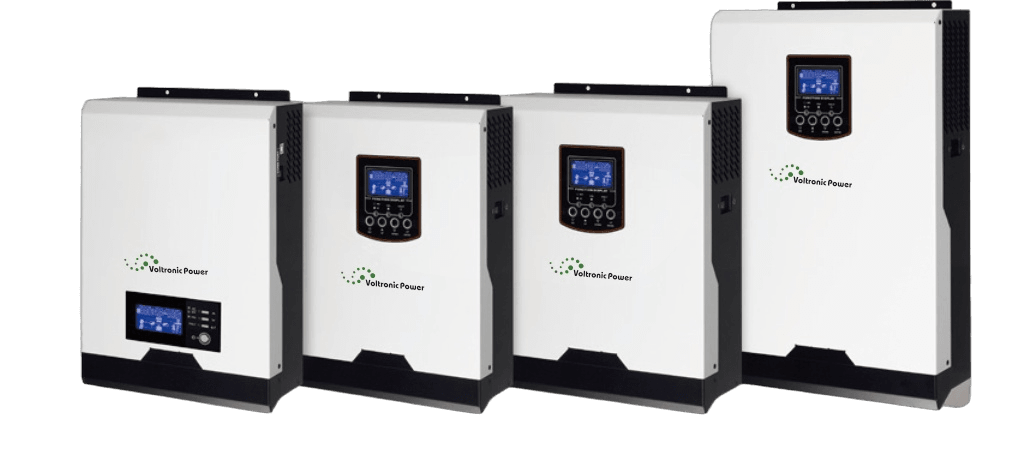

Voltronic Power Axpert V PF1 2KVA Solar Inverter

Voltronic Axpert V PF1 2KVA Solar Inverter

The Axpert V PF1 2KVA is a solar inverter rated 2KVA. Every figure on this page is read from the manufacturer's manual for the Axpert V PF1 series.

  • Input Voltage Waveform: Sinusoidal (utility or generator)
  • Low Loss Voltage: 90Vac±7V (Appliances)
  • High Loss Voltage: 280Vac±7V
AED 1incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

About the Voltronic Axpert V PF1 2KVA Solar Inverter

The Axpert V PF1 2KVA is a solar inverter rated 2KVA. Every figure on this page is read from the manufacturer's manual for the Axpert V PF1 series.

Specifications last updated 17 August 2026

Voltronic Axpert V PF1 2KVA Solar Inverter full specifications

Electrical

Input Voltage WaveformSinusoidal (utility or generator)
Low Loss Voltage90Vac±7V (Appliances)
High Loss Voltage280Vac±7V
High Loss Return Voltage270Vac±7V
Max AC Input Voltage300Vac
Nominal Input Frequency50Hz/60Hz (Auto detection)
Low Loss Frequency40±1Hz
Low Loss Return Frequency42±1Hz
High Loss Frequency65±1Hz
High Loss Return Frequency63±1Hz
Output Short Circuit ProtectionCircuit Breaker
Efficiency (Line Mode)>95% (Rated R load
Transfer Time10ms typical (UPS);
LCD DisplayCurrent mode /
Output500M
Floating Charging Voltage27Vdc
Nominal DC Input Voltage12Vdc
High DC Cut-off Voltage16Vdc
No Load Power Consumption<25W
Nominal Input Voltage230Vac
Low Loss Return Voltage180Vac± 7V (UPS); 100Vac± 7V (Appliances)
Peak Efficiency93%
Surge Capacity2* rated power for 5 seconds
Maximum charging current80A
Overcharge30Vdc
Max. PV Array Open Circuit Voltage145Vdc
Max Charging Current140A
Line Mode Efficiency94.0
Bulk Charging Voltage58.4
Max. PV Array Power5000W

Environmental

Operating Temperature Range-10°C to 50°C
Storage temperature-15°C~ 60°C
