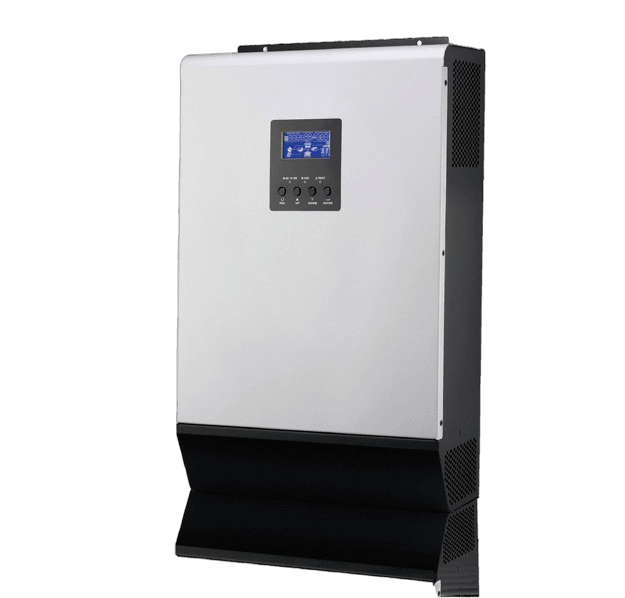

Voltronic Power Axpert MKS II 5000-48 Off-Grid Solar Inverter

Voltronic Axpert MKS II 5000-48 Off-Grid Solar Inverter

The Axpert MKS II 5000-48 is an off-grid solar inverter rated Axpert MKS II 5000-48.

  • Selectable Voltage Range: 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
  • Waveform: Pure sine wave
  • Dual Outputs: Yes
AED 1incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

About the Voltronic Axpert MKS II 5000-48 Off-Grid Solar Inverter

The Axpert MKS II 5000-48 is an off-grid solar inverter rated Axpert MKS II 5000-48. Every figure on this page is read from the manufacturer's manual for the Axpert MKS II series.

Specifications last updated 18 August 2026

Voltronic Axpert MKS II 5000-48 Off-Grid Solar Inverter full specifications

Electrical

Selectable Voltage Range170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
WaveformPure sine wave
Dual OutputsYes
Maximum PV Array Power4500W
AC Voltage Regulation (Batt. Mode)230 VAC ± 5%
Transfer Time10 ms (For Personal Computers) 20 ms (For Home Appliances)
Floating Charge Voltage54 VDC
Solar Charger TypeMPPT
Maximum PV Array Open Circuit Voltage450 VDC
Maxmum Solar Charge Current100 A
Maximum AC Charge Current100 A
Maximum Charge Current100 A

Mechanical

Net Weight (kgs)11.0
Dimension, D x W x H (mm)120 x 295 x 468

Environmental

Humidity5% to 95% Relative Humidity (Non-condensing)
Operating Temperature-10°C to 50°C
Storage Temperature-15°C to 60°C
