Voltronic Power Solar Inverter Datasheet — AXPERT-MAX-TRI-11K

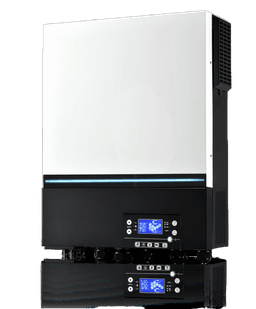

The Axpert MAX TRI 11K is an off-grid solar inverter rated Axpert MAX TRI 11K.
SKU: AXPERT-MAX-TRI-11K | Last Updated: 2026-08-18
⚡Electrical Specifications
| Parallel Capability | YES, 6 units |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| Efficiency (Peak) | 93% |
| Maximum PV Array Power | 12000W (6000W x 2) |
| Maximum PV Input Current | 27A x 2 (MAX 40A) |
| Maxmum Solar Charge Current | 40A/27A (MAX 60A) |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Capacity | 11000VA/11000W |
| Surge Power | 22000VA |
| Compliance Safety | IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12 |
| Floating Charge Voltage | 54 VDC |
| Maximum AC Charge Current | 150 A |
| Waveform | Pure sine wave |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Battery Voltage | 48 VDC |
| Overcharge Protection | 63 VDC |
| MPPT Range @ Operating Voltage | 90 – 450 VDC |
🔧Mechanical Specifications
| Net Weight (kgs) | 18.5 |
🌡️Environmental Specifications
| Humidity | 5% to 95% |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
📏Dimensions
Width432.5 mm
Height553.6 mm
Depth147.4 mm
