Voltronic Power Solar Inverter Datasheet — AXPERT-KING-5KW

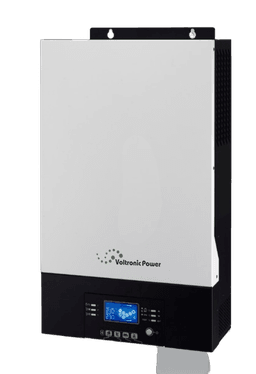

The Axpert KING 5KW is a solar inverter rated 5KW. Every figure on this page is read from the manufacturer's manual for the Axpert KING series.
SKU: AXPERT-KING-5KW | Last Updated: 2026-08-17
⚡Electrical Specifications
| Rated Output Power | 5KVA/5KW |
| Surge Capacity | for 5 seconds |
| Nominal DC Input Voltage | 48Vdc |
| Battery Operating Voltage Range | 40Vdc -66Vdc |
| High DC Recovery Voltage | 64Vdc |
| High DC Cut-off Voltage | 66Vdc |
| No Load Power Consumption | <75W |
| Low Loss Voltage | 110Vac± 7V |
| Low Loss Return Voltage | 120Vac± 7V |
| Overcharge | 34Vdc |
| PV Array MPPT Voltage Range | 30~115Vdc |
| Peak Efficiency | 90% |
| Nominal Input Voltage | 230Vac |
| High Loss Voltage | 280Vac± 7V |
| High Loss Return Voltage | 270Vac± 7V |
| Max AC Input Voltage | 300Vac |
| Low Loss Frequency | 46(56)± 1Hz |
| Low Loss Return Frequency | 46.5(57)± 1Hz |
| High Loss Return Frequency | 53(63)± 1Hz |
| Power Factor | >0.98 |
| Output Short Circuit Protection | Line mode: Circuit Breaker Battery mode: Electronic Circuits |
| Efficiency (Line Mode) | 93% (Peak Efficiency) |
| Transfer Time | Line modeBattery mode 0ms InverterBypass 4ms |
| Communication | RS232 and Bluetooth |
| Max. PV Array Open Circuit Voltage | 145Vdc |
| PV Voltage Accuracy | +/-2V |
🔧Mechanical Specifications
📏Dimensions
Width
Height
Depth
Weight
