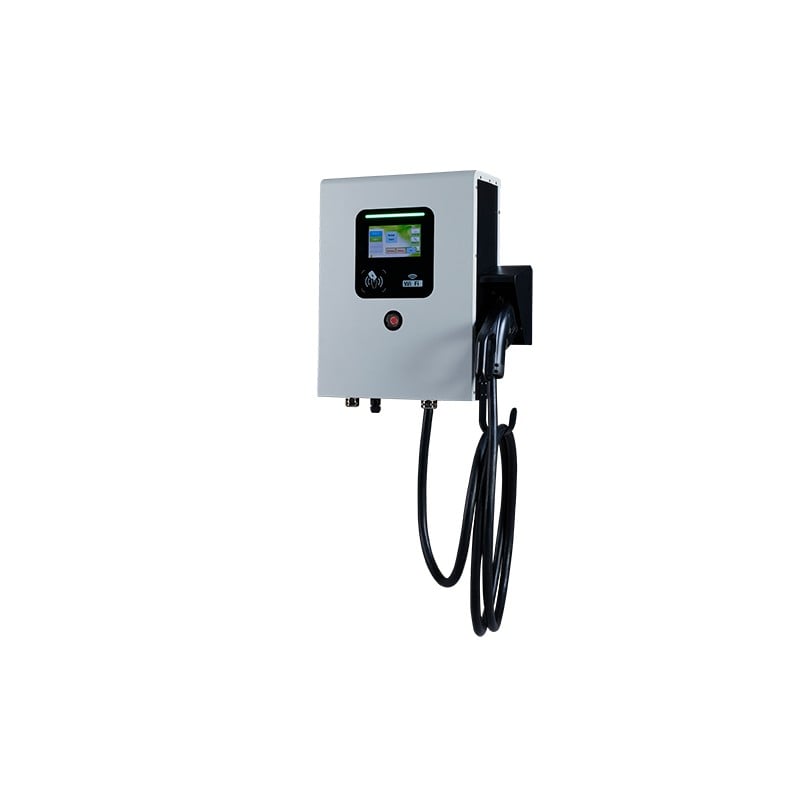

Voltronic EVA 6520W

Discover the Voltronic Power EVA 6520W EV Charger with 20 kW DC output and 200-1000 Vdc voltage range for efficient charging.

DC Output Power Rating (MAX): 20 kW
DC Output Voltage: 200-1000 Vdc

AED 28,000incl. VAT

In stock

Full Specifications Download datasheet (PDF)

Voltronic EVA 6520W features

Self-developed controller for CHAdeMO and

Self-developed controller for CHAdeMO and CCS

Supports multiple charging standards: GB,

Supports multiple charging standards: GB, CCS1, CCS2 and CHAdeMO

Supports up to 2 EVs

Built-in RFID card reader

Supports OCPP 1.6 JSON network

Supports OCPP 1.6 JSON network and 3G/4G

Remote firmware upgrade with APP

Remote firmware upgrade with APP (OTA)

Remote diagnostic function simplifies data

Remote diagnostic function simplifies data collection and analysis process

IP65 protection, IK10 vandal-proof enclosure

IP65 protection, IK10 vandal-proof enclosure and IK8 touch screen

7" color touch LCD display

7" color touch LCD display for easy configuration

About the Voltronic EVA 6520W

The Voltronic Power EVA 6520W is a high-performance EV charger designed to meet the demands of modern electric vehicles. With a maximum DC output power of 20 kW and a versatile voltage range of 200-1000 Vdc, it ensures efficient and rapid charging for your EV. Ideal for residential, commercial, and public charging stations, the EVA 6520W offers reliable and efficient charging solutions for electric vehicles.

Specifications last updated 27 March 2026

Voltronic EVA 6520W full specifications

Electrical

DC Output Power Rating (MAX)	20 kW
DC Output Voltage	200-1000 Vdc
AC Input Power	32 A, 22 kVA @ 400V 50Hz
Input Voltage Range	400 VAC or 380 VAC ± 10%
Input Frequency	50 Hz or 60 Hz
Efficiency	93% (peak)
Power Factor (Full Load)	> 0.98
THDi	< 5%
Cellular Communication	GSM, 4G, LTE
Connectivity	Internet access via 4G/3G/Ethernet (RJ45)
User Authentication	RFID, QR code
User Interface	7\" LCD high-contrast touchscreen
Communication Protocols	Proprietary and OCPP 1.6J
Codes & Standards	IEC 61851-21-2, IEC 61000, IEC/EN 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, GBT18487, GBT20234, NB/T 33008.1, NB/T 33001
Communication to the EV	DIN 70121, ISO/IEC 15118, CHAdeMO 1.6J, GBT27930, GBT 34657, GBT 34658

Mechanical

Dimensions (D x W x H) mm	200 x 450 x 600
Net Weight (kg)	44

Environmental

Protection	Overcurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection
Short Circuit Current	10 kA
Leakage Current	0.8 mA
Operating Altitude	Up to 2000 m
Operating Temperature	-35°C to 55°C
Storage Temperature	-40°C to 70°C
Humidity	< 95%, non-condensing

Certifications

IEC 61851-21-2
IEC 61000
IEC/EN 61851-1
IEC 61851-23
IEC 61851-24
IEC 62196-1
IEC 62196-3
GBT18487
GBT20234
NB/T 33008.1
NB/T 33001

Frequently Asked Questions

The EVA 6520W offers a maximum DC output power of 20 kW and operates with a DC output voltage range of 200-1000 Vdc. It achieves a peak efficiency of 93% and maintains a power factor greater than 0.98 at full load.

Yes, the EVA 6520W is designed to be compatible with a wide range of battery types and can integrate with solar panel systems, making it versatile for various energy setups.

The EVA 6520W's dimensions and weight are not specified here, but it is designed to be robust and suitable for various installation environments. It features integrated surge protection and ground fault protection.

The EVA 6520W requires an AC input power of 32 A and operates at 400V 50Hz. It should be installed in environments with an input voltage range of 400 VAC or 380 VAC ± 10%.

Voltronic Power typically offers a standard warranty for their products, but specific warranty details for the EVA 6520W should be confirmed with the retailer or distributor.

The EVA 6520W complies with several international standards, including IEC 61851-21-2, IEC 61000, and IEC/EN 61851-1, ensuring high safety and performance standards.

The EVA 6520W operates efficiently in temperatures ranging from -35°C to 55°C and can be stored in temperatures from -40°C to 70°C. It is suitable for use in environments with humidity levels below 95%.

Key features of the EVA 6520W include its high efficiency, wide voltage range, and robust protection mechanisms such as overcurrent and overvoltage protection. These features ensure reliable and safe operation.
