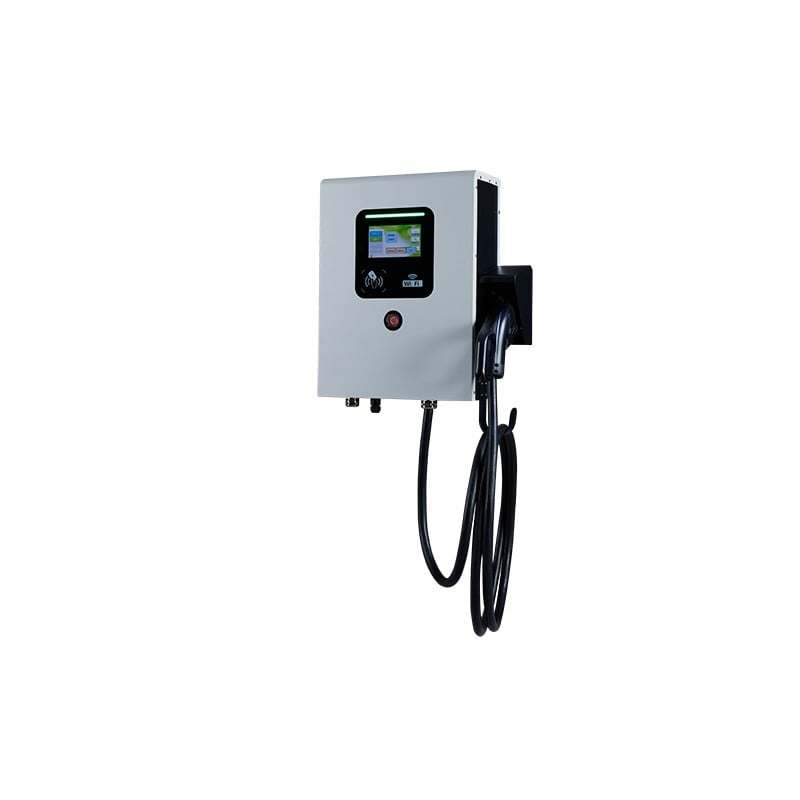

Voltronic EVA 5430W

Discover the Voltronic Power EVA 5420W & 5430W EV Chargers with 30 kW DC output and 200-1000 Vdc voltage range.

DC Output Power Rating (MAX): 30 kW
DC Output Voltage: 200-1000 Vdc

AED 35,000incl. VAT

In stock

Full Specifications Download datasheet (PDF)

Voltronic EVA 5430W features

In-house developed controllers, CCS and

In-house developed controllers, CCS and OCPP charging modules

Wider DC voltage range 300V

Wider DC voltage range 300V to 1000V constant power, faster charging efficiency

Passed 33 sets of rigorous

Passed 33 sets of rigorous environmental and thermal shock tests from -35°C to 55°C

Adapting OCPP network security protocol

Adapting OCPP network security protocol to implement the OTA feature

Passed cloud network protocol test

Passed cloud network protocol test and was verified by OCTT

Passed vehicle end protocol DIN

Passed vehicle end protocol DIN 70121, ISO15118, and was verified by TUV

Multilingual support for 7” color

Multilingual support for 7” color touch LCD

The Linux 5.10 OS and

The Linux 5.10 OS and CPU conformed with cybersecurity standards

Third-party certificated CE EN61851

About the Voltronic EVA 5430W

Introducing the Voltronic Power EVA 5420W and EVA 5430W, cutting-edge EV chargers designed to deliver a maximum DC output power of 30 kW. With a versatile DC output voltage range of 200-1000 Vdc, these chargers ensure efficient and reliable charging for electric vehicles. Ideal for residential, commercial, and public EV charging stations, the EVA series supports fast and efficient charging for a wide range of electric vehicles.

Specifications last updated 23 July 2026

Voltronic EVA 5430W full specifications

Electrical

DC Output Power Rating (MAX)	30 kW
DC Output Voltage	200-1000 Vdc (Constant power from 300-1000Vdc)
AC Input Power	48A, 33 kVA @ 400V 50Hz
Input Voltage Range	400 VAC or 380 VAC +/- 10%
Input Frequency	50 Hz or 60 Hz
Efficiency	93% (peak)
Standby Power	< 35 W
Cellular Communication	GSM, 4G, LTE
Connectivity	Internet access via 4G/3G/Ethernet (RJ45)
Codes & Standards	IEC 61851-21-2, IEC 61000, IEC/EN 61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, GB/T18487, GB/T20234, NB/T 33008.1, NB/T 33001

Mechanical

Dimensions (D x W x H) mm	200 x 450 x 600
Net Weight (kgs)	44

Environmental

Protection	Overcurrent, overvoltage, undervoltage, integrated surge protection, ground fault including DC leakage protection, door opening protection
Overvoltage Category	Type II
Operating Temperature	-35°C to 55°C
Storage Temperature	-40°C to 70°C
Humidity	< 95%, non-condensing
Operating Altitude	Up to 2000 m

Certifications

IEC 61851-21-2
IEC 61000
IEC/EN 61851-1
IEC 61851-23
IEC 61851-24
IEC 62196-1
IEC 62196-3
GB/T18487
GB/T20234
NB/T 33008.1
NB/T 33001

Frequently Asked Questions

The EVA 5420W and EVA 5430W have a maximum DC output power rating of 30 kW and a DC output voltage range of 200-1000 Vdc, with constant power from 300-1000 Vdc. They achieve a peak efficiency of 93%.

Yes, these chargers are designed to be compatible with a wide range of battery types and can be integrated into solar panel systems, making them versatile for various energy solutions.

The dimensions of these chargers are 200 x 450 x 600 mm, and they weigh 44 kg. They are built to be robust and compact for easy installation.

Installation requires a 400 VAC or 380 VAC power supply with a frequency of 50 Hz or 60 Hz. The input power is rated at 48 A, 33 kVA.

Voltronic Power typically offers a standard warranty period for their products, which covers manufacturing defects and performance issues. Please refer to the specific warranty terms provided at the time of purchase.

These chargers comply with several international standards, including IEC 61851-21-2, IEC 61000, IEC/EN 61851-1, and others, ensuring safety and reliability.

They operate efficiently in temperatures ranging from -35°C to 55°C and can be stored in temperatures from -40°C to 70°C. They also function in humidity levels of less than 95%, non-condensing.

Key features include integrated surge protection, ground fault protection, and high efficiency. These chargers are designed for reliability and safety, making them ideal for both residential and commercial use.
