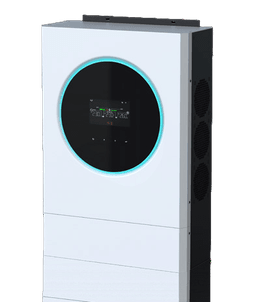

Voltronic Power Solar Inverter Datasheet β INFINISOLAR-V4-PRO-TWIN-6.2KW
The InfiniSolar V4 PRO TWIN InfiniSolar V4 Pro TWIN 6.2KW is a hybrid solar inverter rated InfiniSolar V4 Pro TWIN 6.2KW.
SKU: INFINISOLAR-V4-PRO-TWIN-6.2KW | Last Updated: 2026-08-18
β‘Electrical Specifications
| Phase | 1-phase in/1-phase out |
| Maximum PV Input Power | 9000W |
| Nominal Output Current | 1/30A 220/230/240 VAC 184-264.5 VAC or 195.5-253 VAC (Selectable) 28.27A |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| Maximum DC Voltage | 1/30A |
| Efficiency (DC to AC) | 220/230/240 VAC 93% 120VDC/150 VDC |
| Maximum Charging Current | 120A |
| Parallel Function | Yes, 9 units |
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Maximum AC Input Current | 40A |
| Nominal DC Voltage | 48 VDC |
π§Mechanical Specifications
π‘οΈEnvironmental Specifications
| Humidity | 0~90% RH (Non-condensing) |
| Operating Temperature | -10 to 50ΒΊC |
πDimensions
Width338 mm
Height491.8 mm
Depth138.4 mm
Weight12.0 kg
