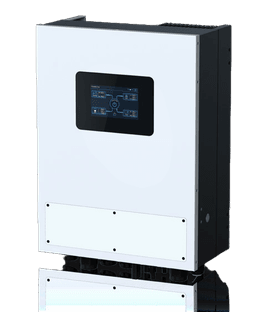

Voltronic Power Solar Inverter Datasheet — INFINI-V4-WP-FIT-6.6KW
The Infini V4 WP FIT Infini V4 WP Fit 6.6KW is a hybrid solar inverter rated Infini V4 WP Fit 6.6KW.
SKU: INFINI-V4-WP-FIT-6.6KW | Last Updated: 2026-08-18
⚡Electrical Specifications
| Phase | 1-phase in 1-phase out |
| Rated Output Power | 6600VA/6600W |
| Maximum Charging Power | 6600W |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184-264.5 VAC or 195.5-253 VAC or 182 - 260 VAC (Selectable) |
| Nominal Output Current | 28.7A |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | > 97% |
| Number of MPP Trackers / Maximum Input Current | 2/21A |
| Efficiency (DC to AC) | 93% |
| Maximum Solar Charging Current | 135A |
| Maximum AC Charging Current | 135A |
| Maximum Charging Current | 135A |
| Parallel Function | Yes, 9 units |
| Communication Port | RS-232/RS485, WIFI,BMS |
| Safety/EMC Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-2/4, IEC |
| Maximum PV Input Power | 12000W |
🔧Mechanical Specifications
🌡️Environmental Specifications
| Operating Temperature | -10°C to 50°C |
📏Dimensions
Width
Height
Depth
Weight16.0 kg
