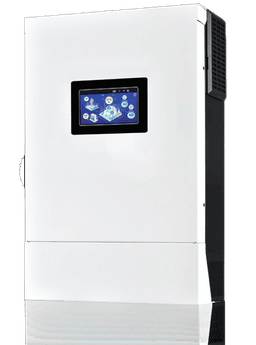

Voltronic Power Solar Inverter Datasheet — AXPERT-MKS-TWIN-LV-AXPERT-MKS-5-TWIN-LV-3.6K
The Axpert MKS TWIN LV Axpert MKS 5 TWIN LV 3.6K is an off-grid solar inverter rated Axpert MKS 5 TWIN LV 3.6K.
SKU: AXPERT-MKS-TWIN-LV-AXPERT-MKS-5-TWIN-LV-3.6K | Last Updated: 2026-08-18
⚡Electrical Specifications
| Selectable Voltage Range | 95-140 VAC (For Personal Computers) 65-140 VAC (For Home Appliances) |
| AC Voltage Regulation (Batt. Mode) | 120VAC ±5% |
| Waveform | Pure sine wave |
| Maximum PV Array Power | 7200W |
| Maximum PV Input Current | 27A |
| Maximum AC Charge Current | 70A |
| Overload Capability | 5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Floating Charge Voltage | 54 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maxmum Solar Charge Current | 120 A |
| Maximum Charge Current | 120 A |
| Efficiency (Peak) | 93 % |
🔧Mechanical Specifications
| Net Weight (kgs) | 12.0 |
| Dimension, D x W x H (mm) | 140 x 295 x 468 |
🌡️Environmental Specifications
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
📏Dimensions
Width
Height
Depth
Weight
