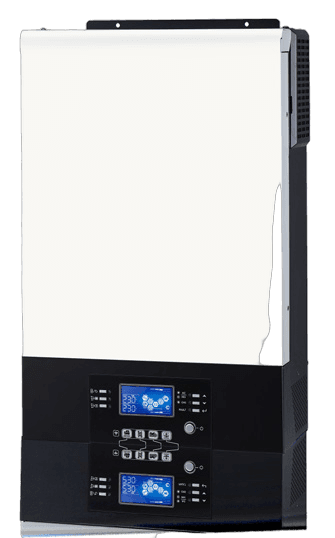

Voltronic Axpert King II TWIN

Discover the Axpert King II TWIN inverter by Voltronic Power with 6000VA/6000W power and parallel capability for up to 9 units.

RATED POWER: 6000-6200 W
PARALLEL CAPABILITY: Up to 9 units
AC Voltage Regulation (Line&Batt. Mode): 230VAC ± 5%
Frequency Range: 46-64 Hz

2,700 AEDincl. VAT

Features

Dual outputs, for smart load

Dual outputs, for smart load management

Maximum PV input current increases

Maximum PV input current increases to 27A

Zero (0ms) transfer time to

Zero (0ms) transfer time to protect mission-critical loads such as servers and ATMs

High PV input voltage range

Detachable LCD control module with

Detachable LCD control module with multiple communications

Selectable high power charging current

Built-in Wi-Fi for mobile monitoring

Built-in Wi-Fi for mobile monitoring (App is available)

Configurable AC/Solar input priority via

Configurable AC/Solar input priority via LCD setting

Reserved communication port for BMS

Reserved communication port for BMS (RS485 or CAN-BUS)

USB On-the-Go function

Parallel operation up to 9

Parallel operation up to 9 units

Overview

The Axpert King II TWIN by Voltronic Power is a high-performance inverter designed to meet demanding power needs. With a rated power of 6000VA/6000W and the ability to connect up to 9 units in parallel, it ensures reliable and efficient energy management. Ideal for residential and commercial applications, the Axpert King II TWIN is perfect for backup power systems, renewable energy setups, and off-grid installations.

Full specifications

Electrical

RATED POWER	6000VA/6000W / 6200VA/6200W
PARALLEL CAPABILITY	Up to 9 units
AC Voltage Regulation (Line&Batt. Mode)	230VAC ± 5%
Frequency Range (Synchronized Range)	46–54 Hz or 56–64 Hz
Frequency Range (Batt. Mode)	50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Harmonic Distortion	≤ 3 % THD (Linear Load); ≤ 5 % THD (Non-linear Load)
Transfer Time	0 ms
Time Inverter to Bypass	4 ms (Typical)
Waveform	Pure sine wave
Line Mode	94%
ECO Mode	98%
Battery Voltage	40–66 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
Solar Charger type	MPPT
Maximum PV Array Power	6000 W
MPPT Range @ Operating Voltage	120 – 430 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum Solar Charge Current	120A / 120A
Maximum AC Charge Current	120A / 120A
Communication Interface	RS232, USB, Dry contact, WI-FI, RS485
Voltage Range	110-280 VAC
Input Voltage Waveform	Sinusoidal
Low Loss Voltage	176Vac±7V
Low Loss Return Voltage	186Vac+7V
High Loss Voltage	280Vac±7V
High Loss Return Voltage	270Vac±7V
Max AC Input Voltage	300Vac
Low Loss Frequency	46(56)±1Hz
Low Loss Return Frequency	46.5(57)±1Hz
Power Factor	>0.98
Efficiency (Line Mode)	93% (
Output Short Circuit Protection	Line mode: Circuit Breaker Battery mode: Electronic Circuits
Battery Mode	92%
Surge Capacity	2* rated power for 5 seconds
Nominal DC Input Voltage	48Vdc
No Load Power Consumption	<75W
Safety Certification	CE

Mechanical

Dimension, D x W x H (mm)	140 x 295 x 468
Net Weight (kgs)	12

Environmental

Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Frequently Asked Questions

The Axpert King II TWIN inverter has a rated power of 6000VA/6000W. It offers high efficiency with 94% in line mode, 98% in ECO mode, and 92% in battery mode. The AC voltage regulation is 230VAC ± 5%.

Yes, the inverter is compatible with various battery types, operating at a voltage range of 40–66 VDC. It can also be integrated with solar panels and the grid for hybrid energy solutions.

The physical dimensions and weight of the Axpert King II TWIN are not specified here. However, it is important to check the product manual for detailed physical specifications and IP rating.

Installation should be performed by a qualified technician. Ensure proper ventilation and avoid exposure to extreme temperatures or moisture. Refer to the installation manual for detailed instructions.

The Axpert King II TWIN comes with a standard warranty. For specific warranty terms and conditions, please refer to the warranty documentation provided with the product.

The Axpert King II TWIN complies with standard certifications, ensuring it meets industry standards for safety and performance. Specific certification details can be found in the product documentation.

The inverter is designed to operate efficiently within a specific temperature and humidity range. For optimal performance, avoid extreme environmental conditions. Refer to the product manual for detailed operating conditions.

Key features include parallel capability of up to 9 units, pure sine wave output, and a fast transfer time of 0 ms. These features ensure reliable and efficient power management for various applications.
